The system uses the optimal hair removal wavelength of 808nm diode for deep penetration into the dermis where the hair follicle is located. In treatment procedure, a series of low fluence, high repetition pulses increases the temperature of both the hair follicle and the surrounding, nourishing tissue to 45 degree Celsius. This more gradual heat delivery uses the chromophores into the surround tissue as reservoirs to effectively heat up the hair follicle. This, along with the heat energy absorbed directly by the hair follicle, damages the follicle and prevents re-growth.
808nm diode laser machine is particularly effective to hair follicle melanocytes without injury surrounding tissue. The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature raises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal.
| Laser Type | Diode Laser H8 |
| Wavelength | 808nm / 808nm+760nm+1064nm |
| Energy | 1-120J/cm2 |

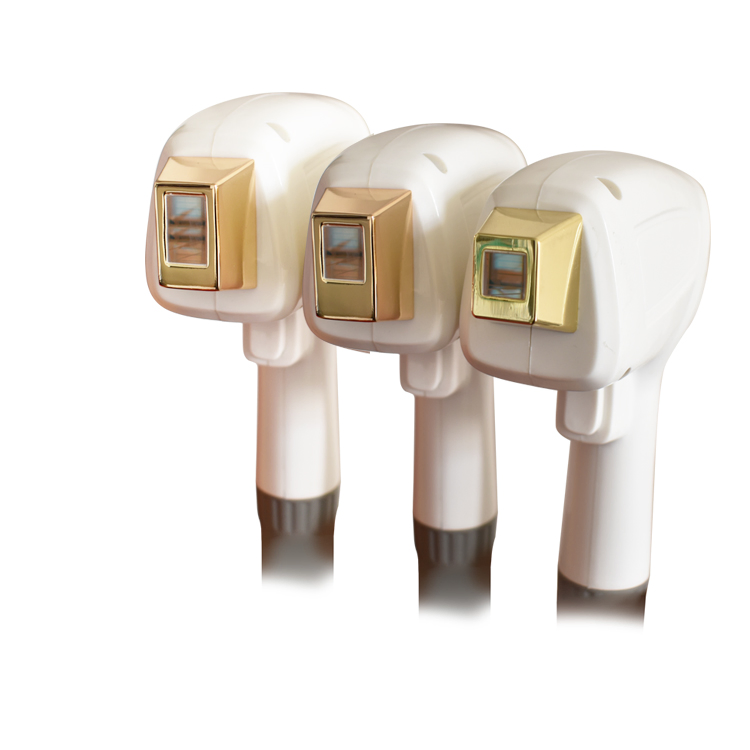

| Treatment Head | Sapphire crystal |
| Pulse Duration | 1-400ms (adjustable) |
| Repetition Rate | 1-10 Hz |
| Interface | 10.4 inch Touch Screen |
| Output Power | 2000W |
| Spot Size | 12×12mm / 12×24mm |

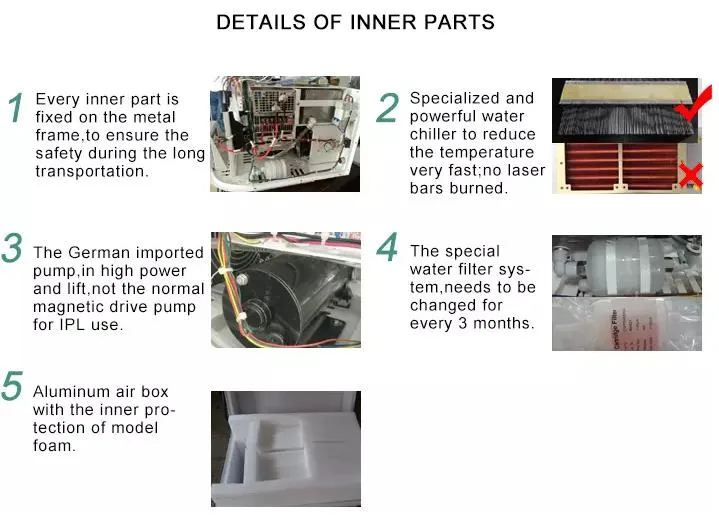

| Cooling System | Water chiller + Air cooling + Sapphire touch cooling |
| Power Supply | AC 220V 50Hz / AC 110V 60Hz |
| Dimension | 410*460*520mm |
| G.W. | 50 KG |

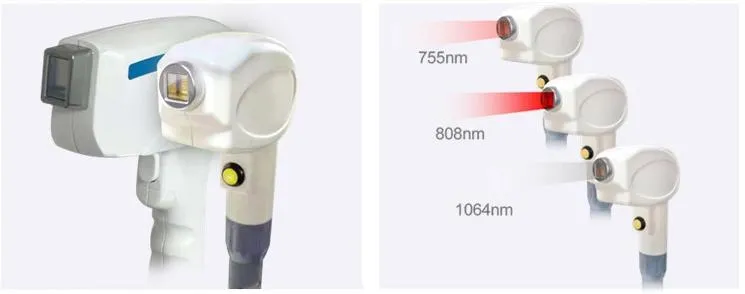

1. H8 Pro Diode Laser: Features 755nm, 808nm, and 1064nm wavelengths. 755nm is ideal for light-colored and thin hair. 808nm is the golden standard for almost all skin and hair types. 1064nm penetrates deeper, making it safer for dark skin.
2. Intelligent Interface: 10.4 inches intelligent display with multifunctional language options for easy operation.
