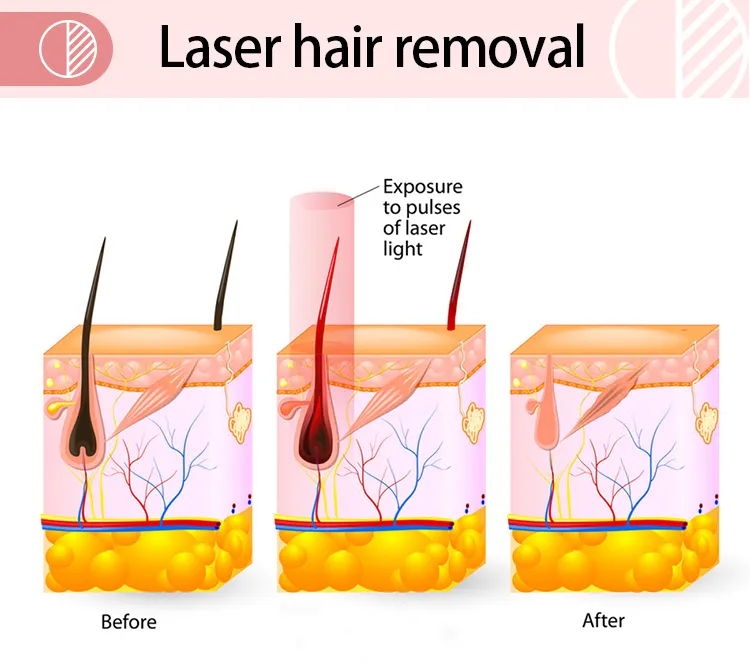

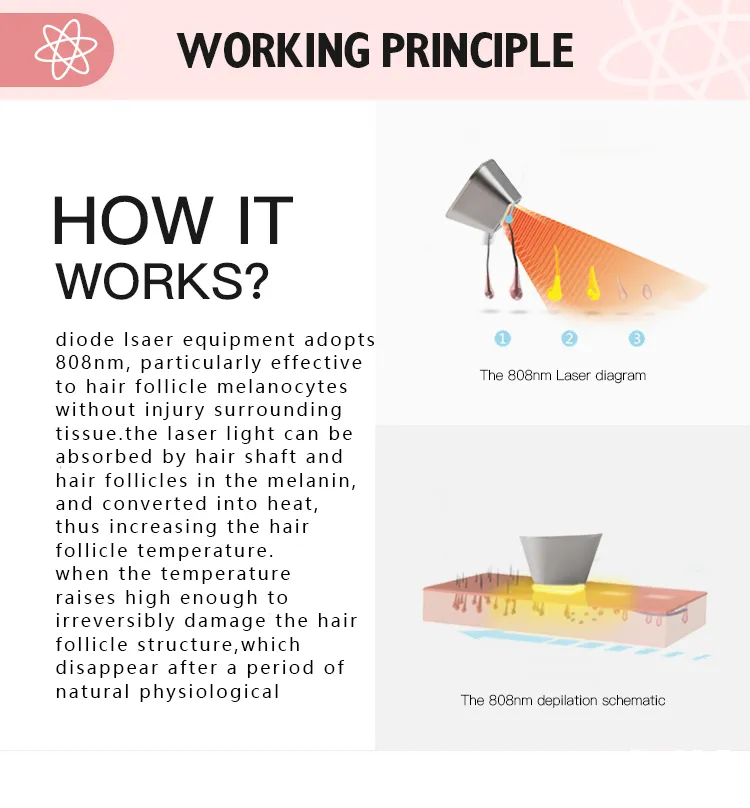

The treatment principle is based on selective photothermolysis. As hair follicles and hair shafts are rich in melanin, the laser targets the melanin. When the follicle and surrounding tissues absorb high energy, the temperature increases sharply, leading to follicle damage and permanent hair removal.

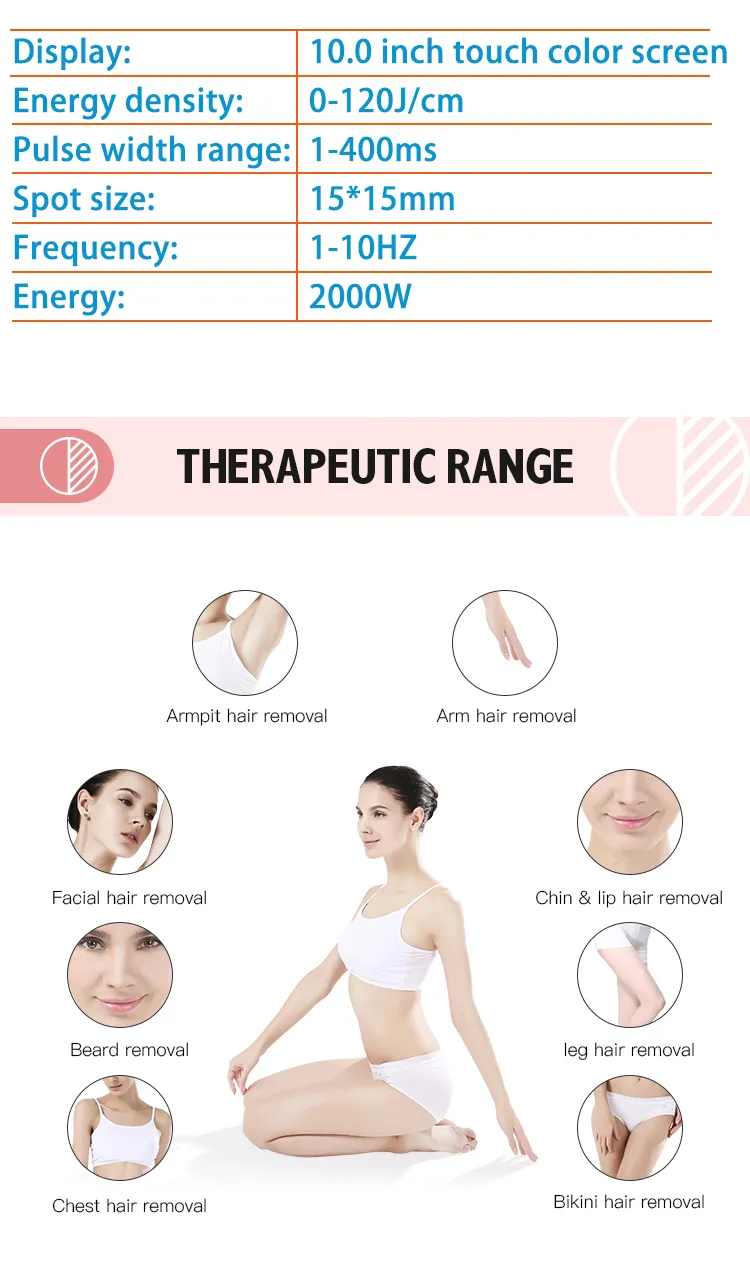

| Laser Type | Semiconductor diode laser |
| Wavelength | 808nm |
| Energy Range | 1-120J/cm² |
| Pulse Duration | 1-400ms |
| Frequency | 1-10Hz |
| Spot Size | 15*20mm, 15*15cmm |
| Cooling System | TEC Sapphire contact cooling (-5°C to 5°C) |
| Voltage Power | 220V/110V 50Hz/60Hz |

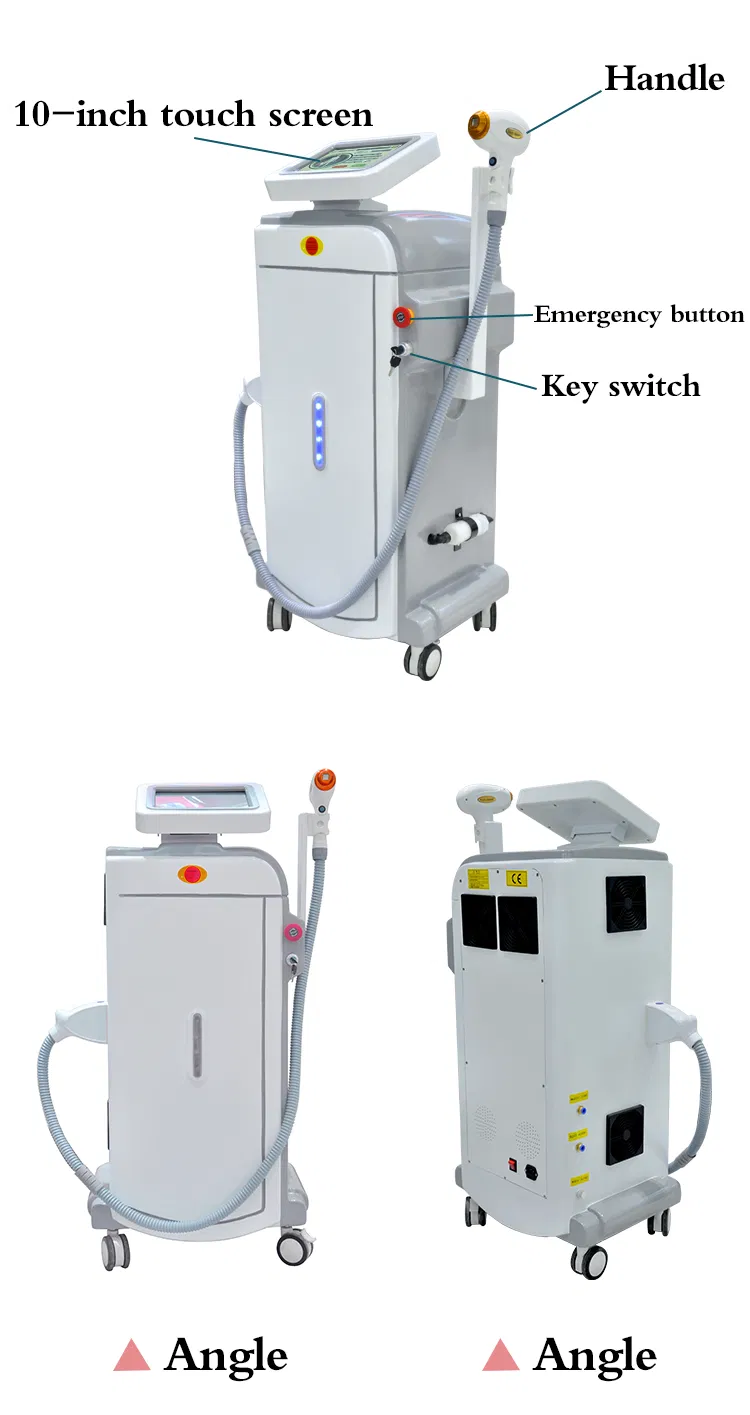

1. Securely connect the hand-piece.
2. Fill with distilled water until it overflows from the designated hole.
3. Ensure the key is off and the stop switch is in the 'up' position.
4. Connect the power cord and switch the circuit breaker to "On".
5. Turn the key to "On" to start the cooling and water circulation system.
6. After 1 minute, restart the machine and refill water to ensure full capacity.
7. Maintenance: Replace distilled water every 2-3 months.
