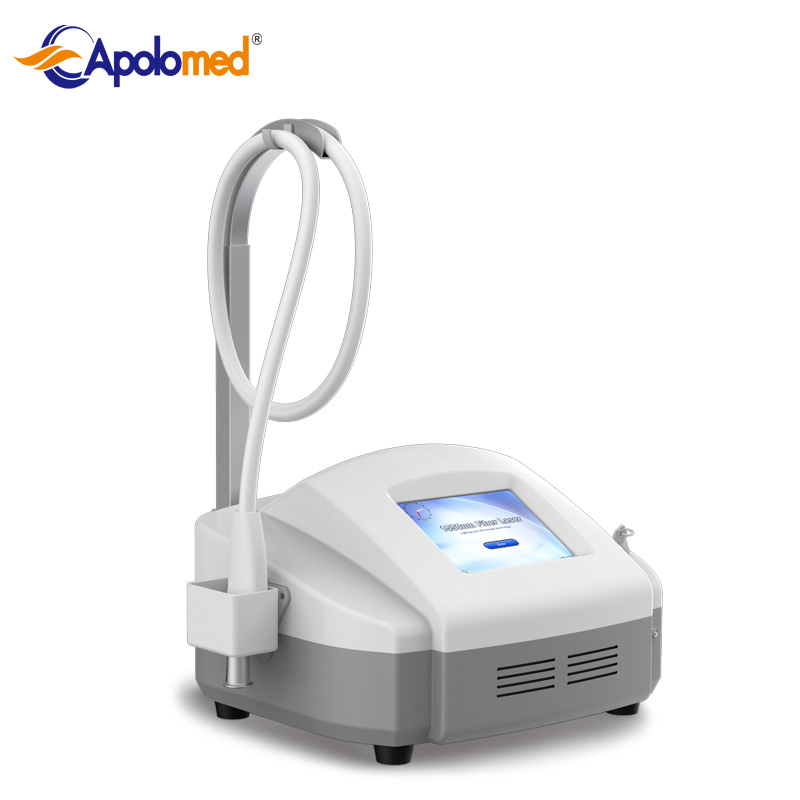

15W 30W Erbium 1550 Skin Resurfacing Fiber Laser Machine for Anti-Aging

Customization: Available
Type: 1550nm Fiber Erbium Laser
Theory: 1550nm Fiber Erbium Laser

Product Description

📍 Basic Info.
Model NO.
HS-230
Application
for Commercial
Portable
Portable
Certificate
CE0197, ISO13485, FDA 510K
Wavelength
1550nm
Laser Power
15W
Pulse Width
1~20ms/DOT
Cooling System
Advanced Air Cooling System
Laser Output
1~120mj/DOT
Scan Area
20*20mm
Production Capacity
1500sets
Origin
China
✨ Product Description
15W 30W Erbium 1550 Skin Resurfacing Fiber Laser Machine for Anti-Aging
Fiber Laser Machine

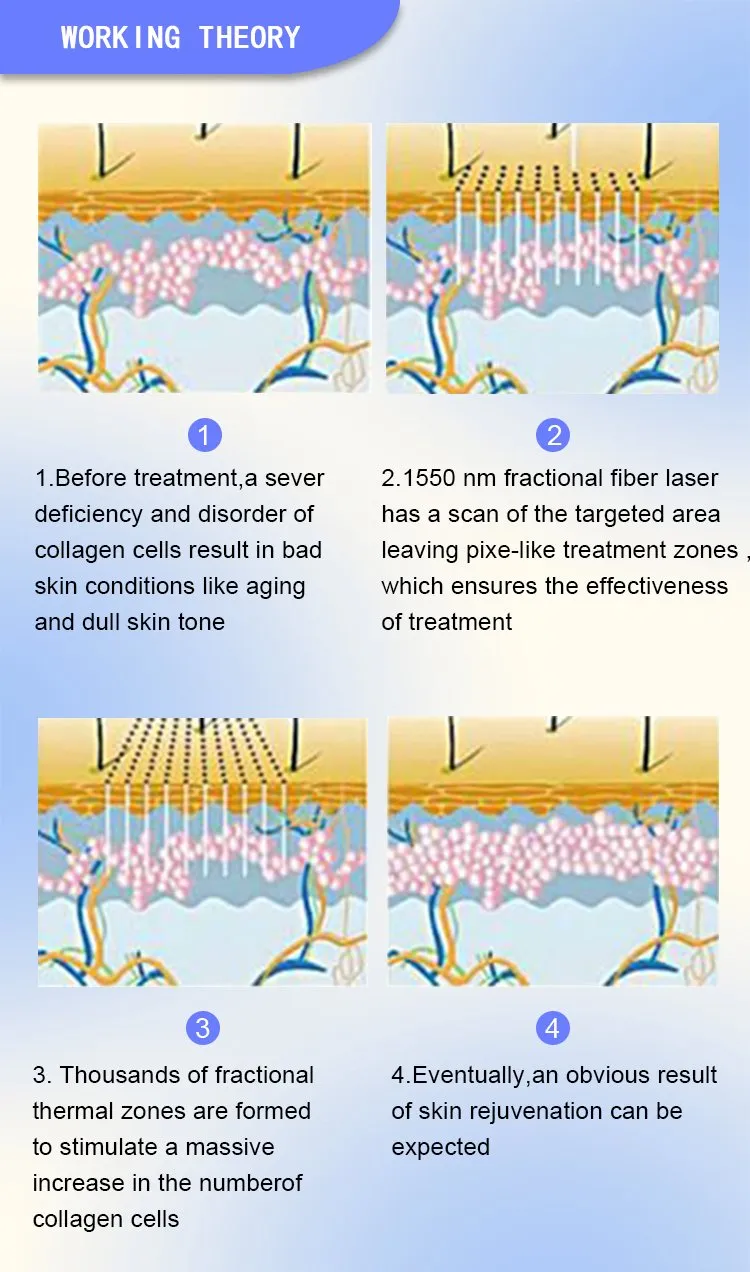

🔬 Principle of 1550nm Skin Rejuvenation
1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetreates deep into the dermis, remolding collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restores smooth after several treatments. The heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the while area was treated. These driver the better clinical results and make less downtime and side effect.
🎯 Applications
  • Skin rejuvenation and toning
  • Effective wrinkle removal
  • Acne scar and surgical scar treatment
  • Deep skin resurfacing
  • Stretch mark removal
📊 Technical Specifications
ParameterDetails
ModelHS-230
Wavelength1550nm Erbium fiber laser
Laser power15W
Laser output1~120 mJ/dot
Density25~3025 PPA/cm2 (12 levels)
Scan area20x20mm
Pulse width0.06~8ms/dot
Operate modeArray, Random
Interface9.7" true color touch screen
Cooling SystemAdvanced air cooling system
Dimension52x44x32cm (L*W*H)
Weight30Kg

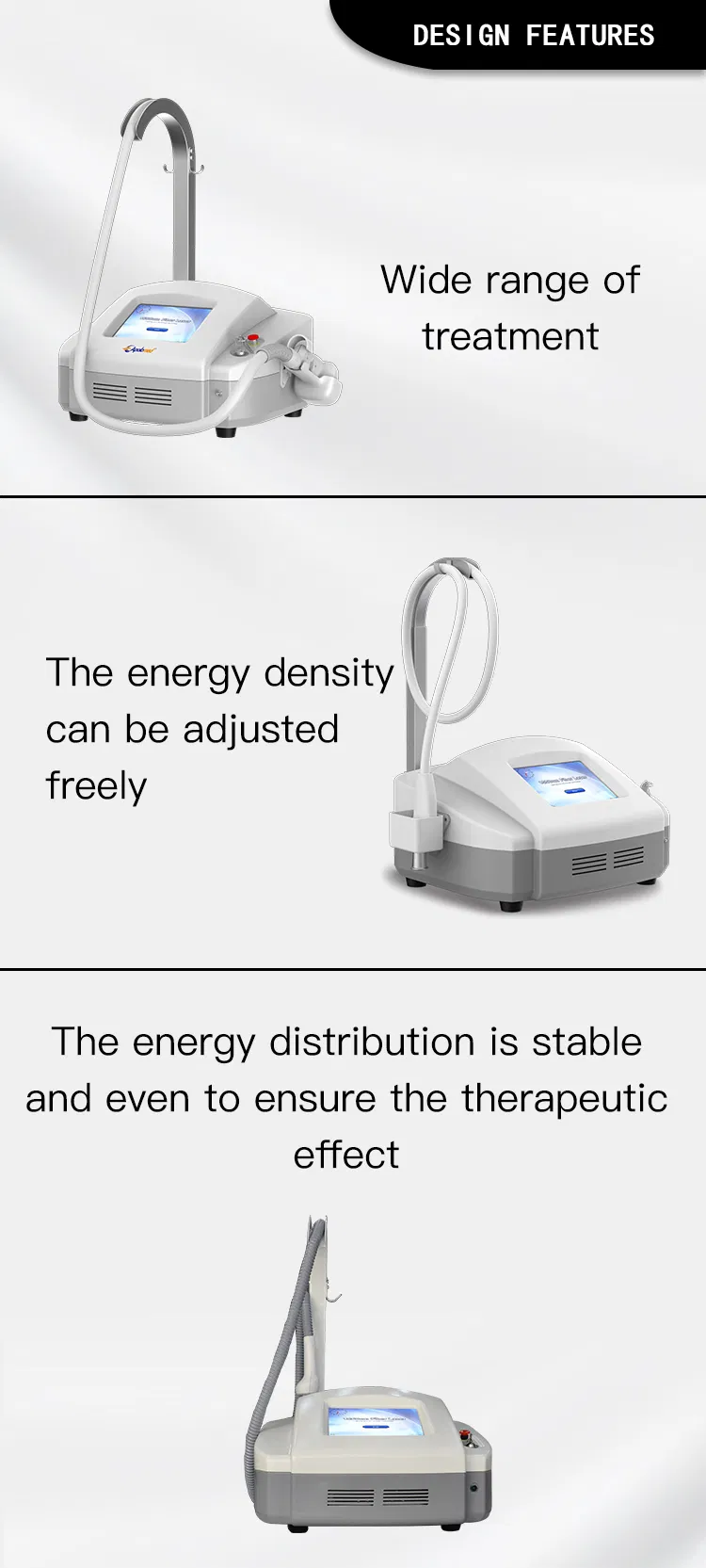

⭐ Key Advantages
  • Treat a wider range of indications with only one machine.

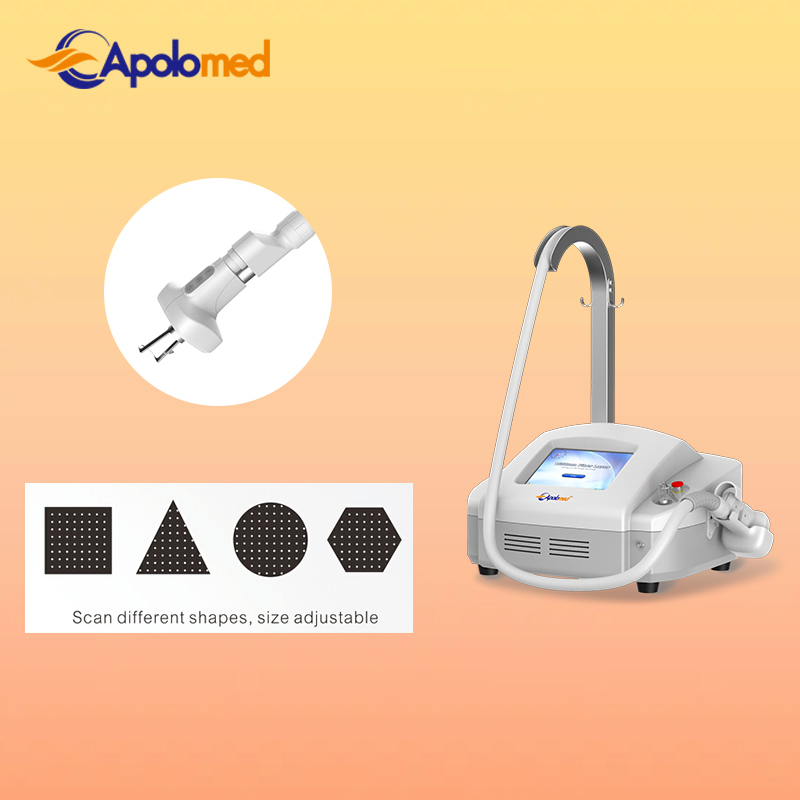

  • Select specific treatment areas easily with irregular shape settings.

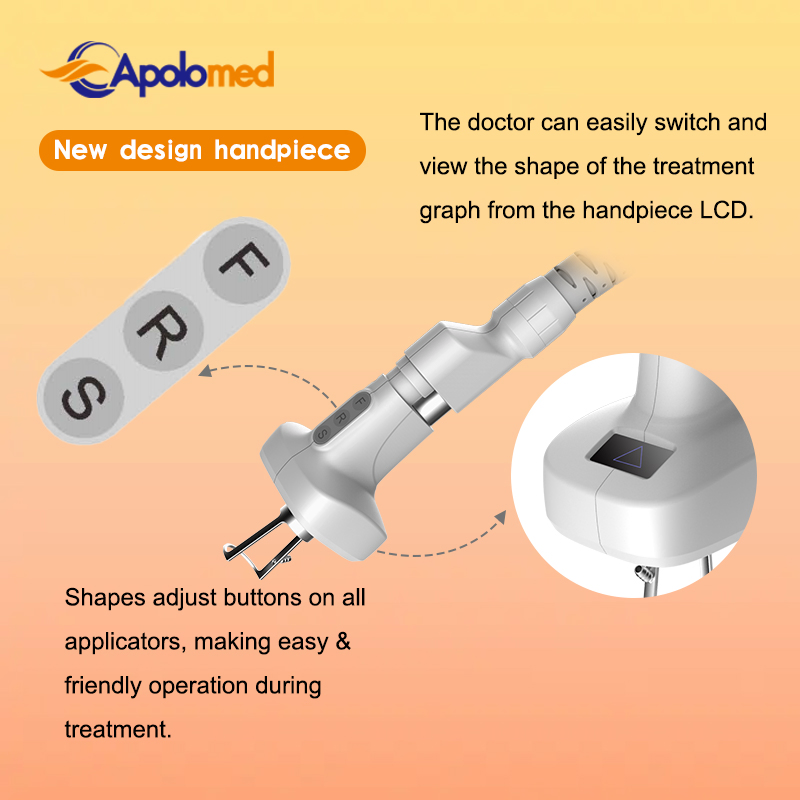

  • Compact handpiece offers user comfort and easy treatment control.
  • Density is fully adjustable for personalized treatments.

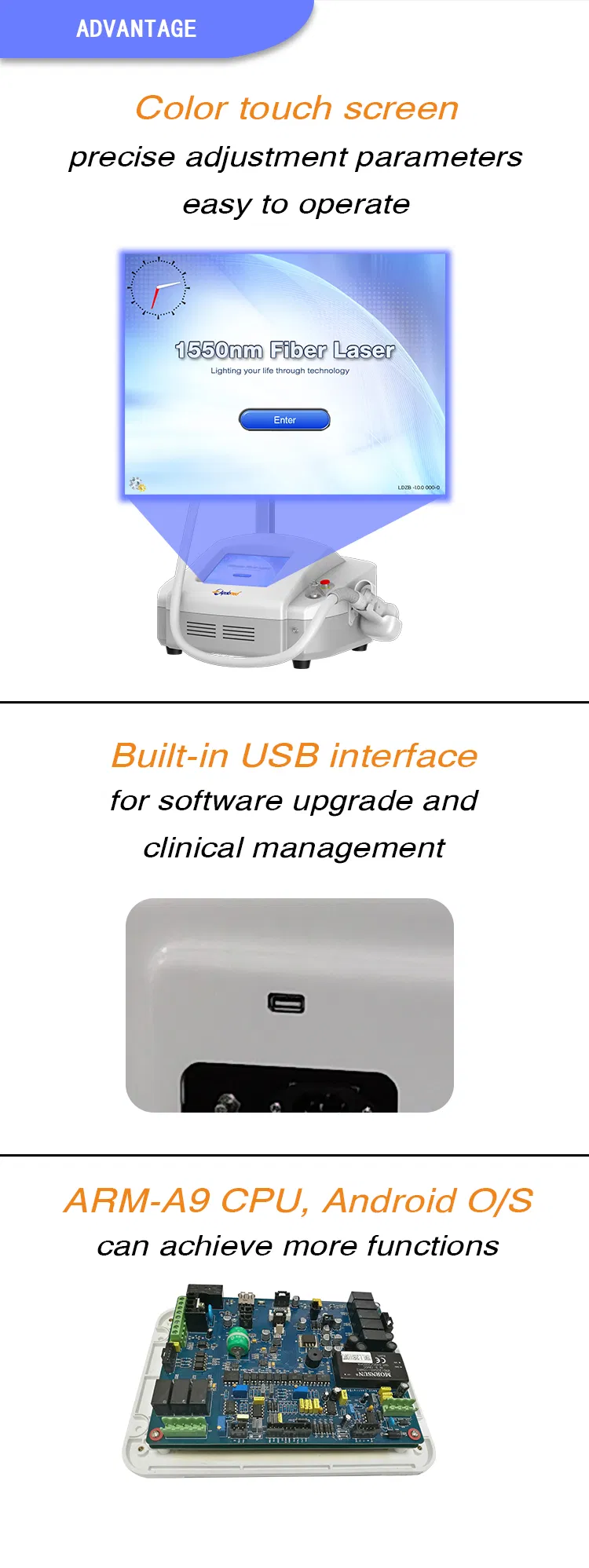

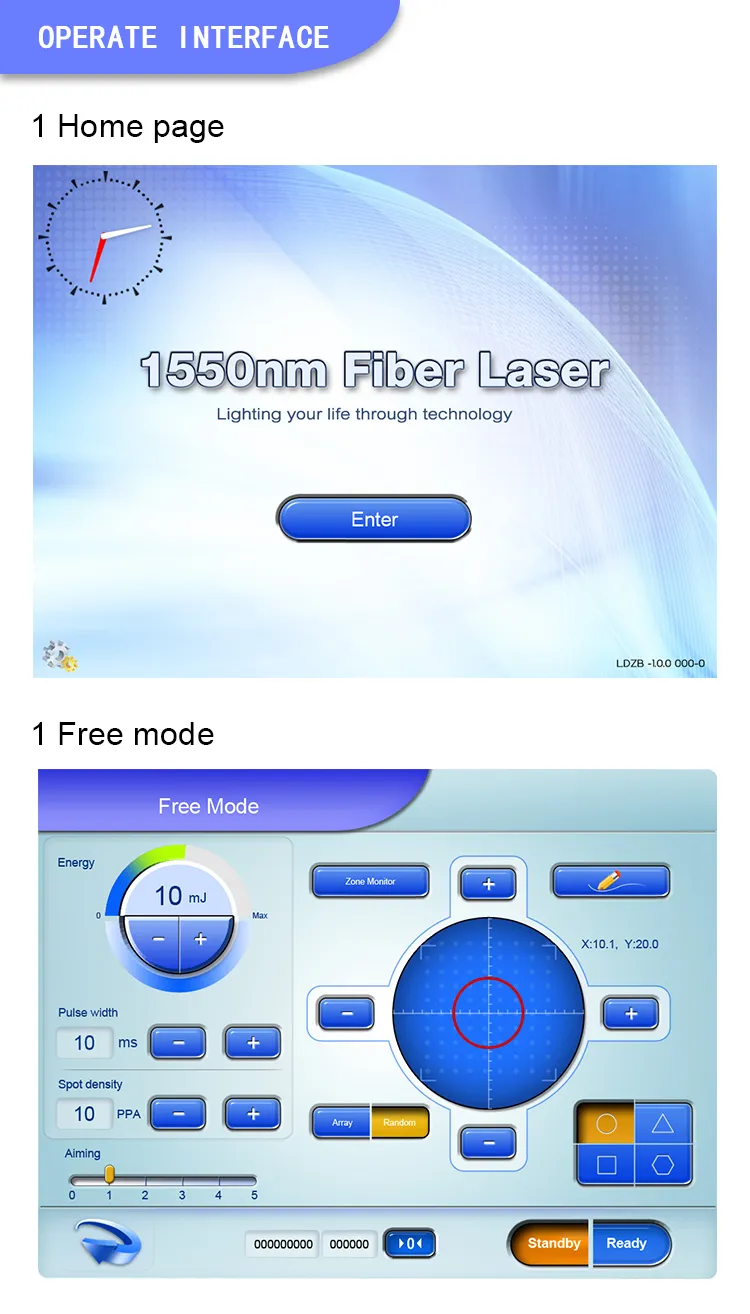

  • Intuitive touch screen to easily change parameters for optimal results.
  • Stable energy output ensures consistent and high-quality results.
  • RF ID/IC card management for versatile business operation models (Rental, Membership).
  • Android operating system supports customer database and customized interfaces.
📜 Quality & Certificates
Our equipment is manufactured strictly in accordance with ISO 13485. All products comply with Medical CE certificates under Council Directive 93/42/EEC(MDD) and regulations (EU) 2017/745(MDR). Our high-end devices have obtained certificates such as US 510K, Australia TGA, and Brazil Anvisa.
Certificates
🏭 Factory & Exhibition
📦 Shipping & Delivery
❓ Frequently Asked Questions
1. How does the 1550nm fiber laser work for skin resurfacing? The 1550nm Erbium fiber laser emits microscopic beams that create tiny thermal zones in the skin. This triggers a natural healing process that remolds collagen and regenerates skin tissue while leaving surrounding areas intact for faster recovery.
2. What are the primary skin concerns this machine can treat? It is highly effective for skin rejuvenation, wrinkle removal, acne scars, surgical scars, skin toning, and the removal of stretch marks.
3. Is the treatment painful, and what cooling is used? The treatment is generally well-tolerated. The machine features an Advanced Air Cooling System to maintain patient comfort throughout the procedure.
4. How long is the downtime after a session? Due to the fractional laser technology, the skin heals much faster than traditional laser treatments. Most patients experience minimal downtime and fewer side effects.
5. Can the laser density and scan shapes be customized? Yes, the machine supports 12 levels of density adjustment and multiple scan shapes (Array, Random). It even supports free-drawing shapes for irregular treatment areas via the Android interface.
6. What certifications does this laser machine have? The machine is manufactured under ISO 13485 standards and holds Medical CE, US FDA 510K, Australia TGA, and Brazil Anvisa certifications.
