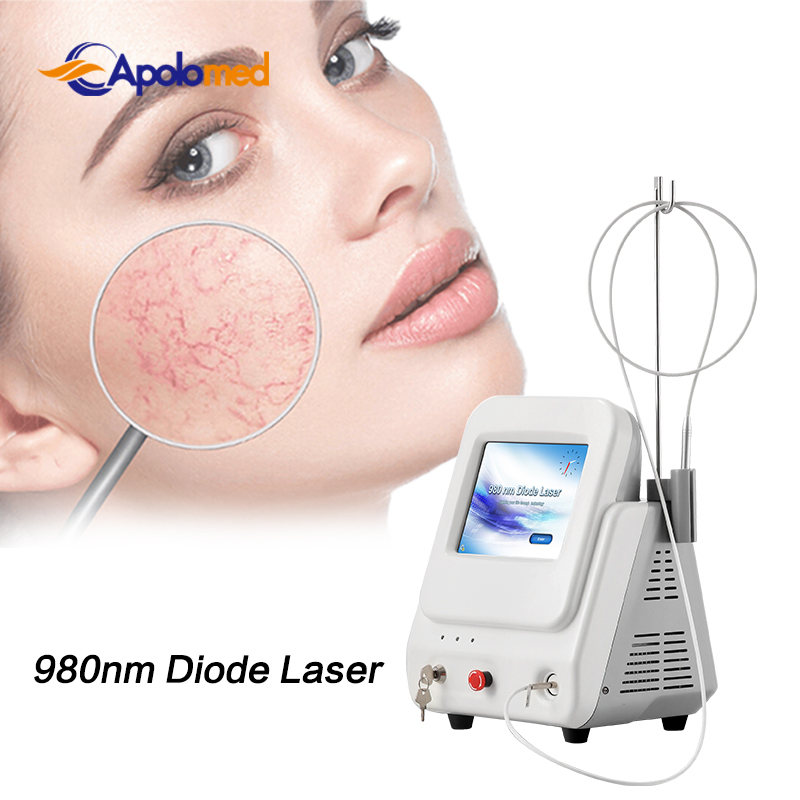

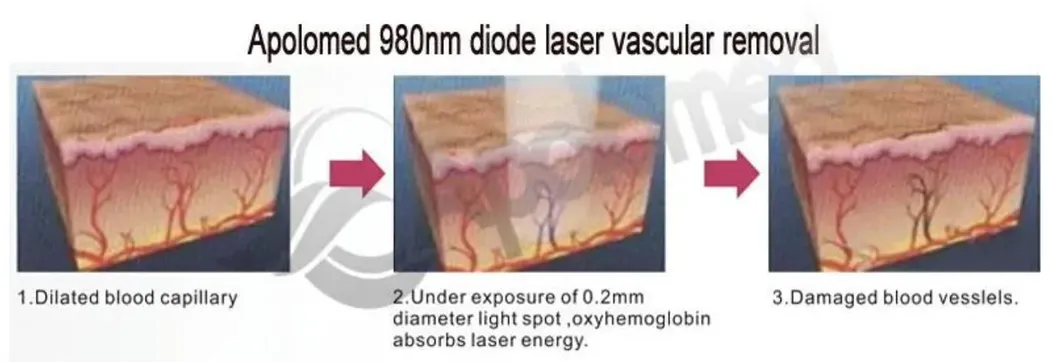

Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vascular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation.
The specific 980nm wavelength ensures normal intact skin tissue architecture is preserved during treatment, ensuring therapeutic effect without damaging superficial skin.

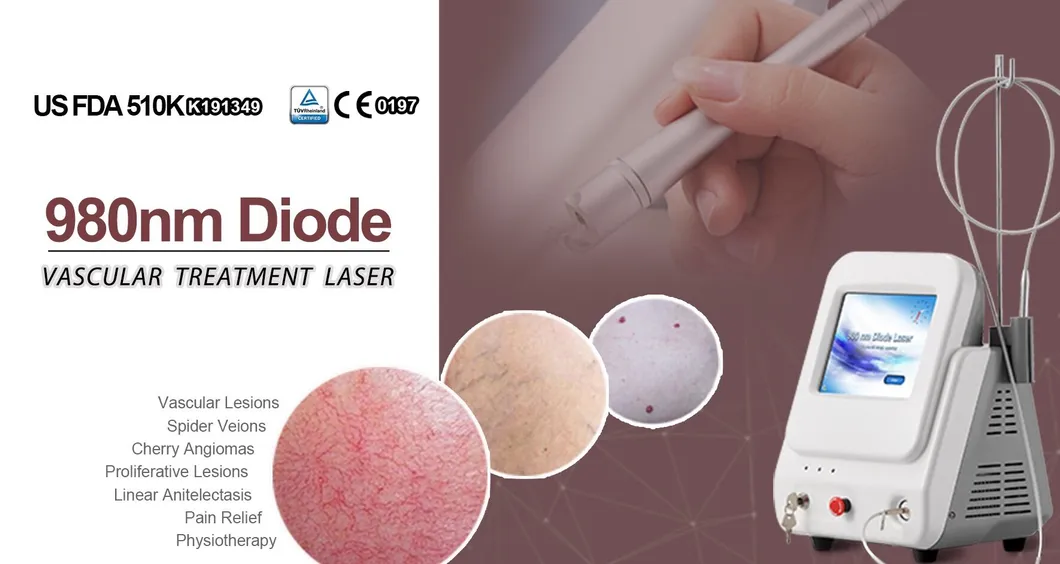

Cherry angiomas Treatment:
| Feature | Specification |
|---|---|
| Wavelength | 980nm |
| Laser output power | 2~30W |
| Output modes | CW, single or repeat pulse |
| Pulse width | 5,10~400ms |
| Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz |
| Single pulse Energy | 0.1~12J |
| Repeat pulse Power | 0.1~18W |

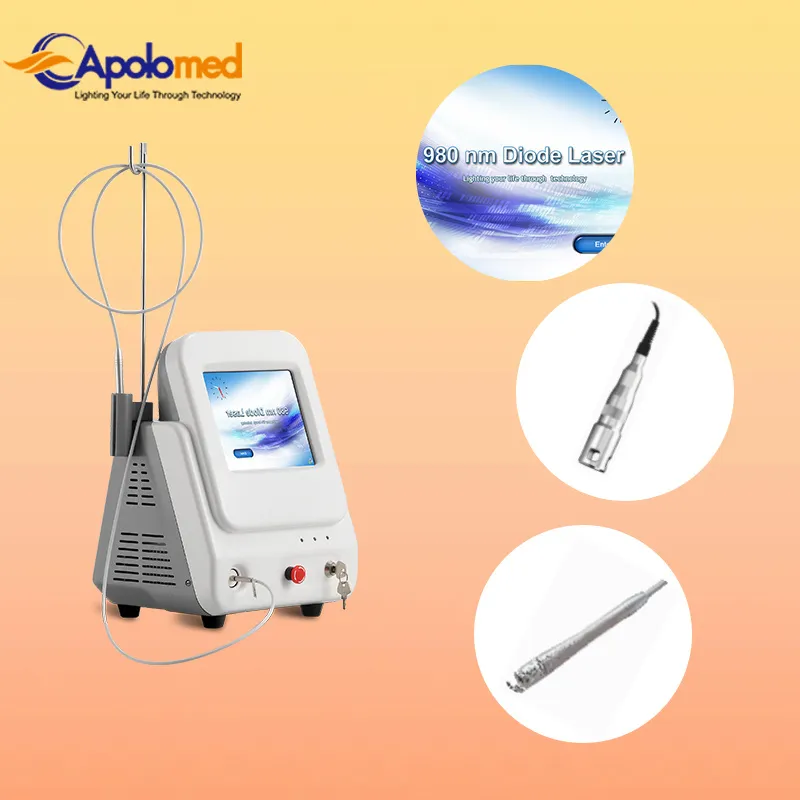

| Transmission system | Fibers of 300um, with SMAS 905 connector |
| Aiming beam | Diode 650nm(red), ≤2mW |
| Cooling system | Air cooling |

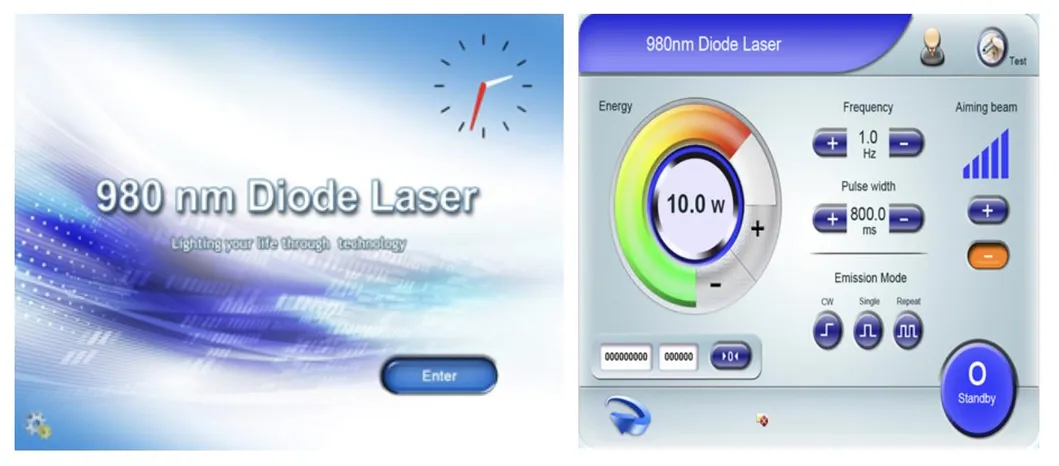

| Control mode | 8'' true color touch screen |
| Dimension/Weight | 28*27*37cm / 8Kgs |
BEFORE / AFTER CLINICAL PHOTOS

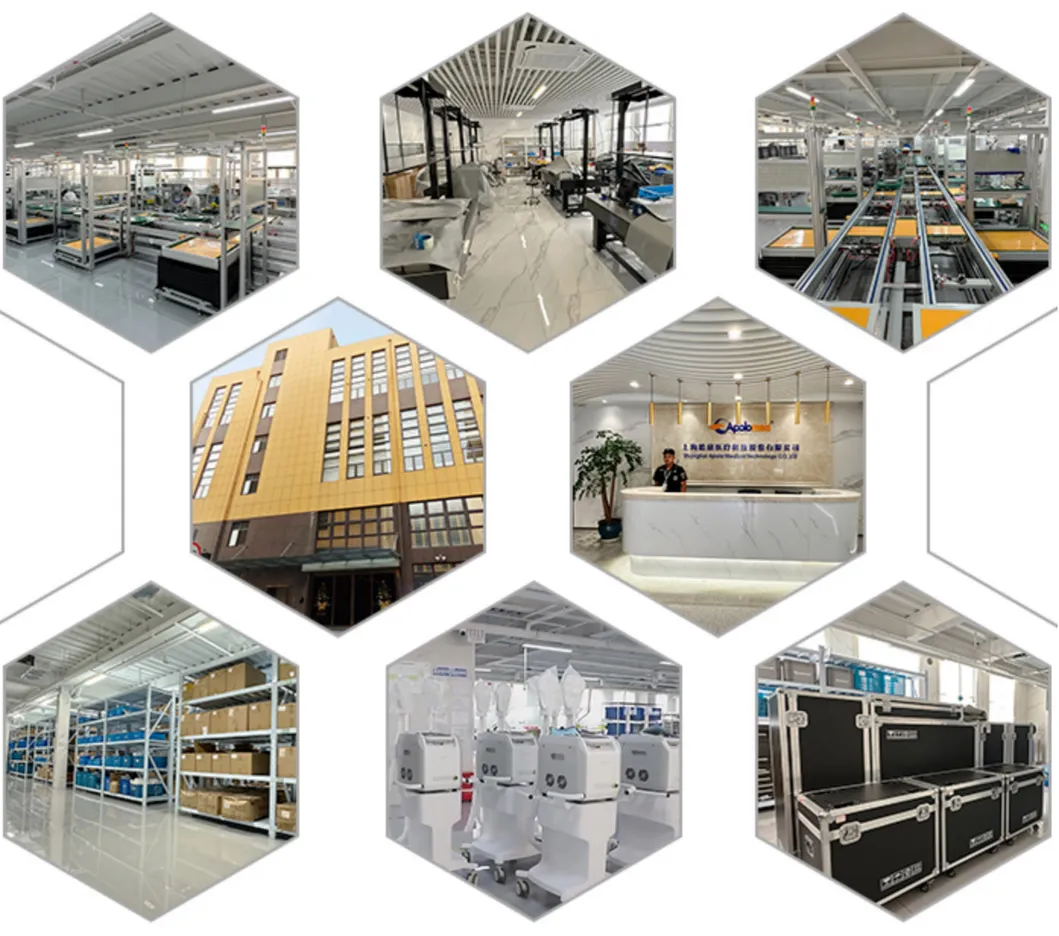

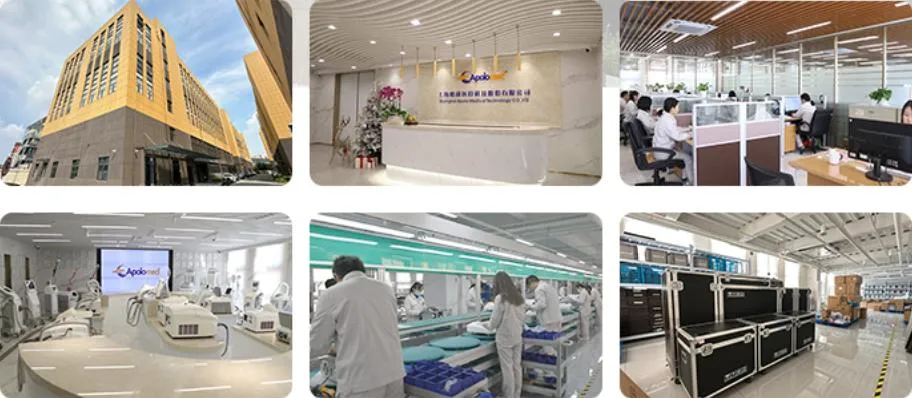

Equipment is manufactured strictly in accordance with ISO 13485. Products comply with Medical CE certificates under Council Directive 93/42/EEC(MDD) and regulations (EU) 2017/745(MDR), along with US 510K and Australia TGA.
