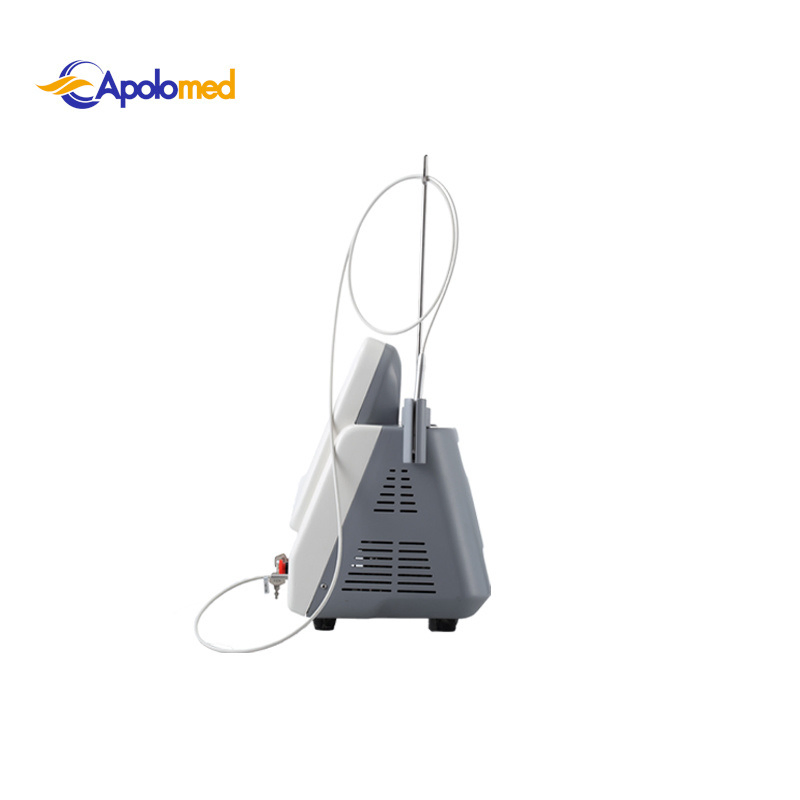

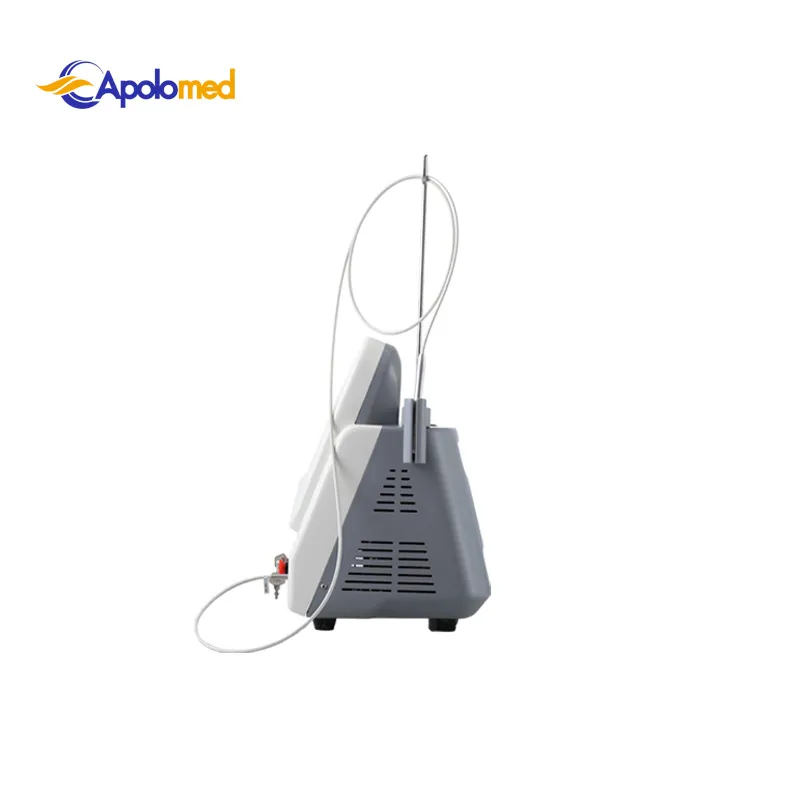

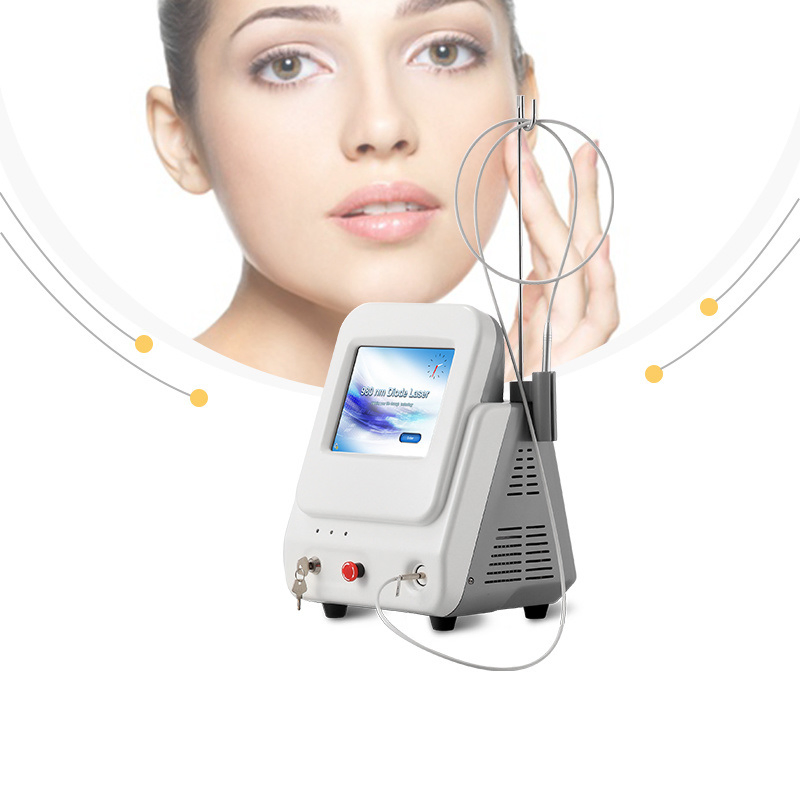

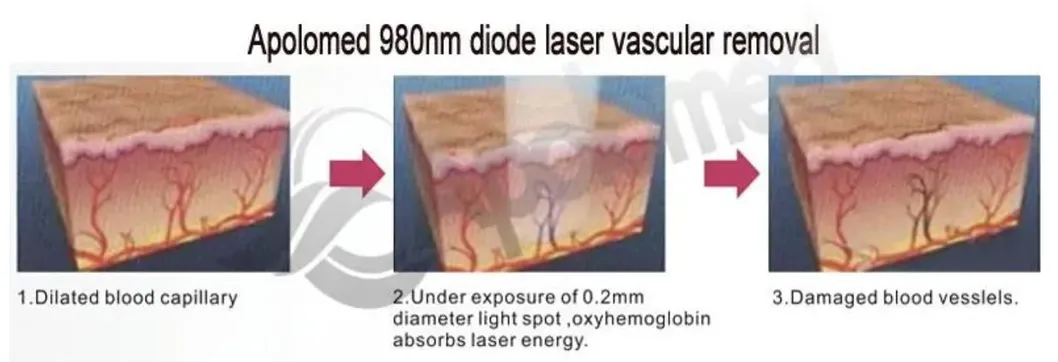

Based on the theory of "selective laser photothermal", the 980nm diode laser system uses a specific wavelength to penetrate the skin for vascular treatment. Under laser irradiation, hemoglobin and red pigment capillaries maximize absorption of laser energy. This leads to solidification, blocking of blood vessels, and capillary shrinkage, resulting in intravascular coagulation and eventual metabolic degradation.
| Wavelength | 980nm |
|---|---|
| Laser Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5, 10~400ms |
| Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz |
| Single Pulse Energy | 0.1~12J |
| Repeat Pulse Power | 0.1~18W |

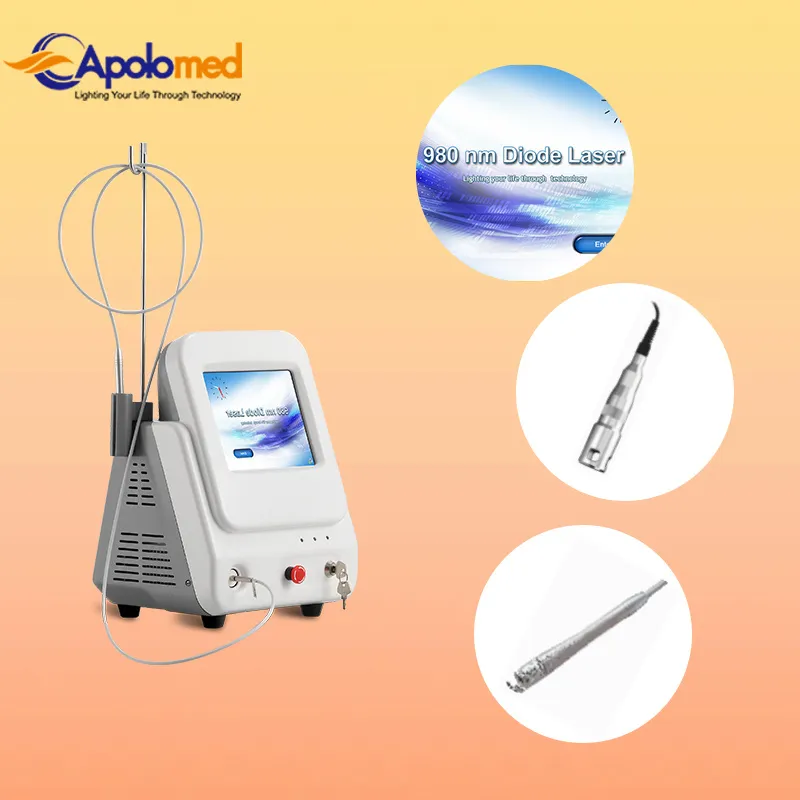

| Transmission System | Fibers of 300um with SMA 905 connector |
| Aiming Beam | Diode 650nm (red), ≤2mW |
| Cooling System | Air Cooling |
| Control Mode | 8'' True Color Touch Screen |
| Weight | 8 Kgs |

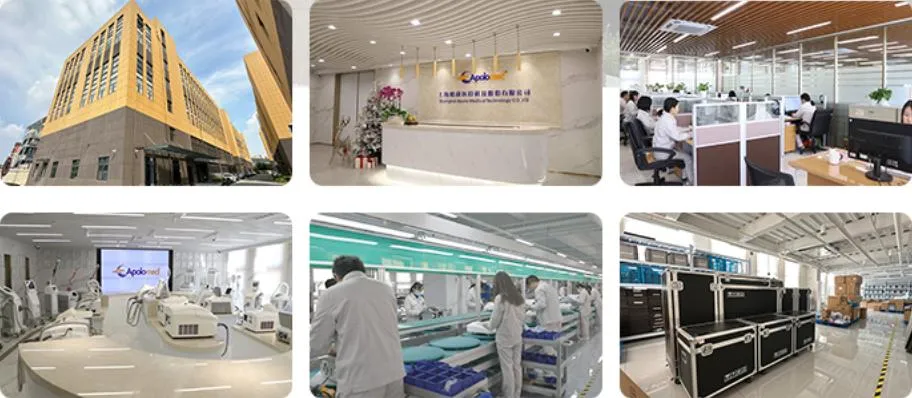

As a leading designer and manufacturer of medical and aesthetic technologies, we specialize in Intense Pulsed Light (IPL), various laser systems (Pico Nd:YAG, CO2, 980nm Diode), HIFU, and body slimming solutions. Since 2001, we have developed over 40 high-standard devices with patented technologies.

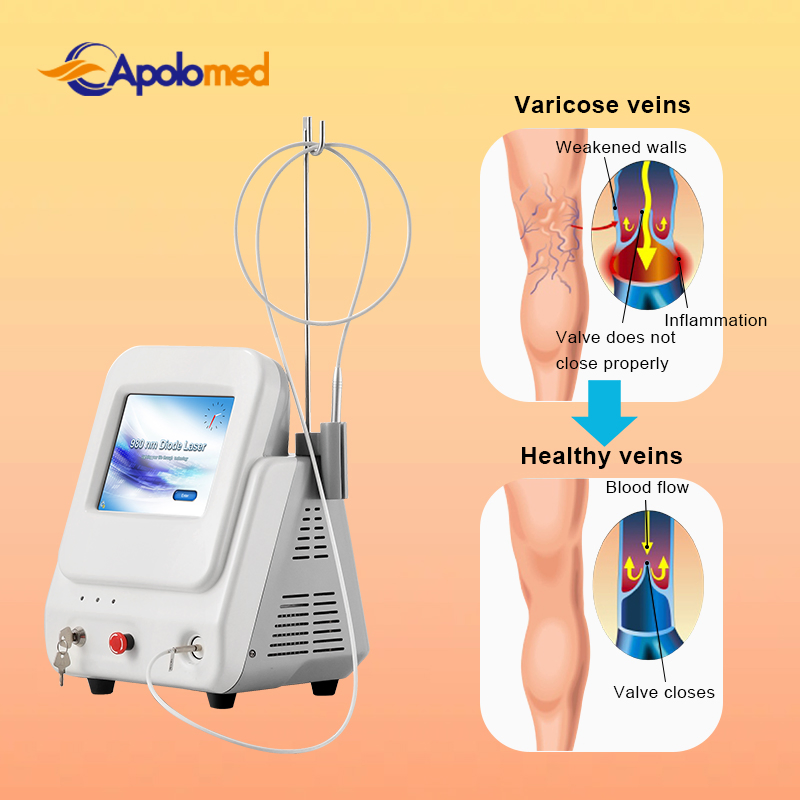

It is primarily used for vascular treatments, including spider vein removal, cherry angiomas, and treating various vascular lesions on both the face and body.
The treatment is minimally invasive. Most procedures take between 30 to 45 minutes and require no downtime, allowing patients to return to their daily activities immediately.
The HS-890 is manufactured in accordance with ISO 13485 standards and complies with Medical CE certificates (MDR) and USA FDA 510K clearance.
Yes, the device offers adjustable laser fiber output power (up to 30W), as well as adjustable pulse widths and repetition rates to suit different clinical needs.
The machine utilizes an efficient air cooling system, which helps maintain the device's performance while keeping it lightweight and portable.

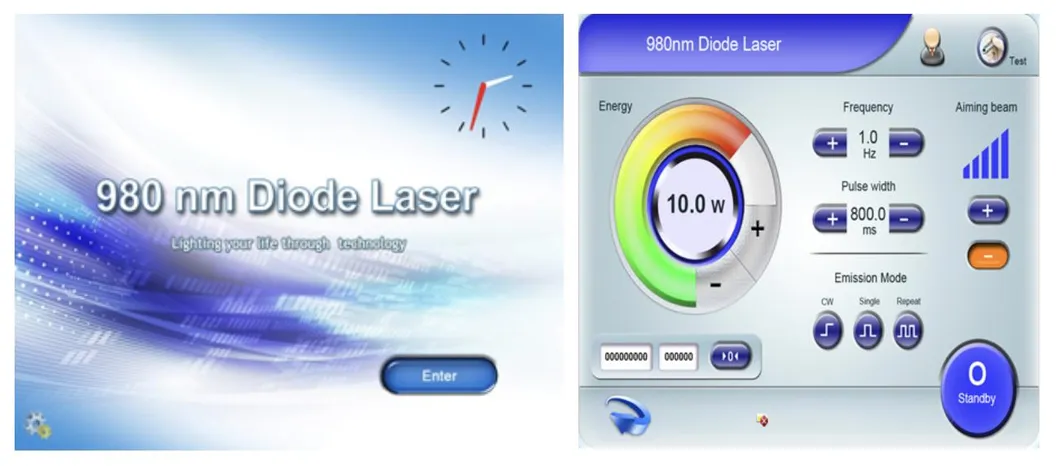

We provide comprehensive technical support and free training to ensure that operators can use the 8" touch screen system and adjust parameters safely and effectively.
