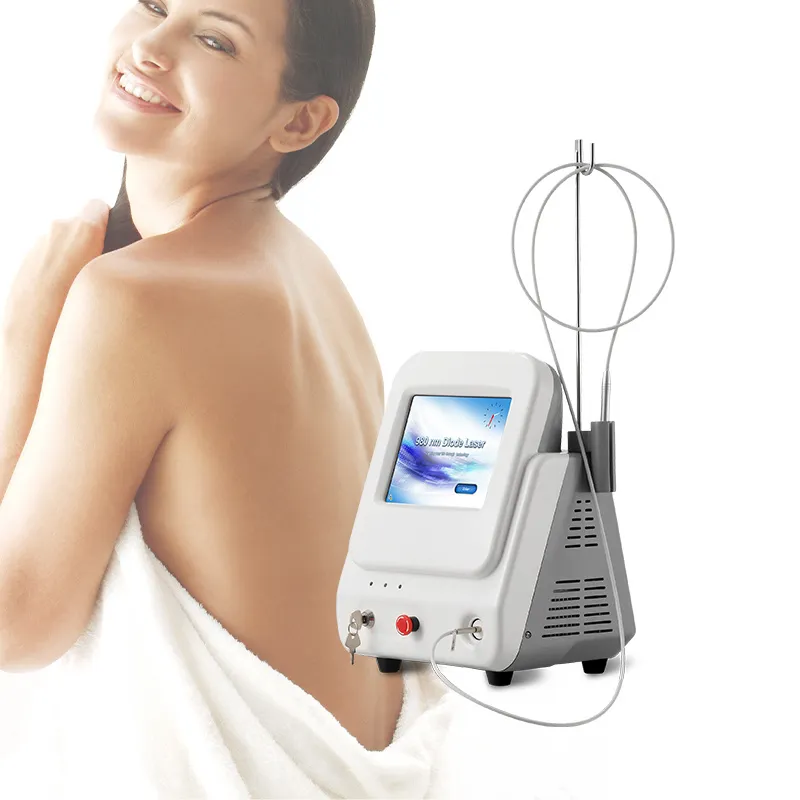

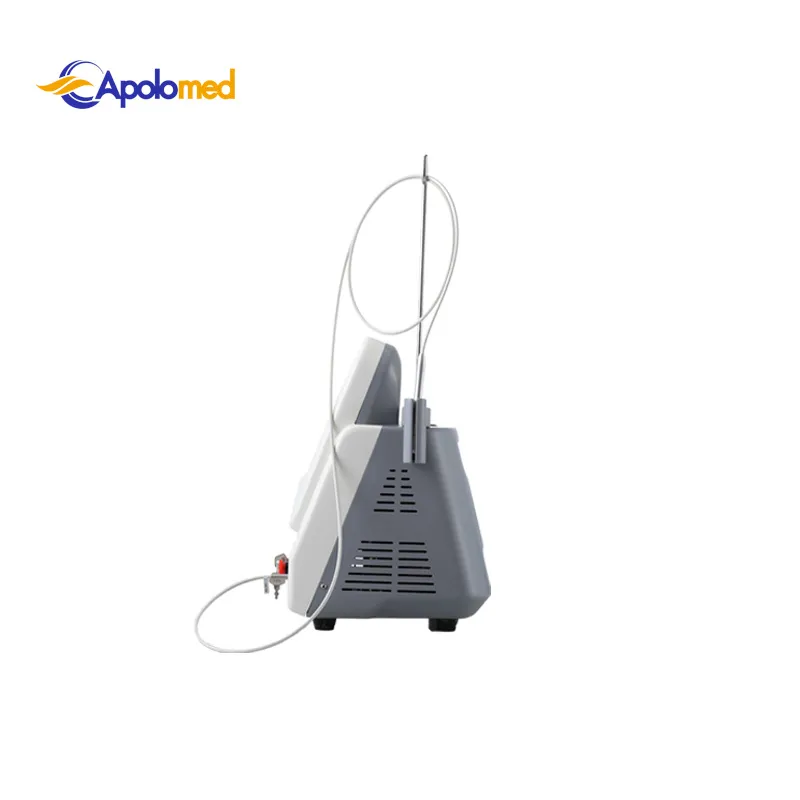

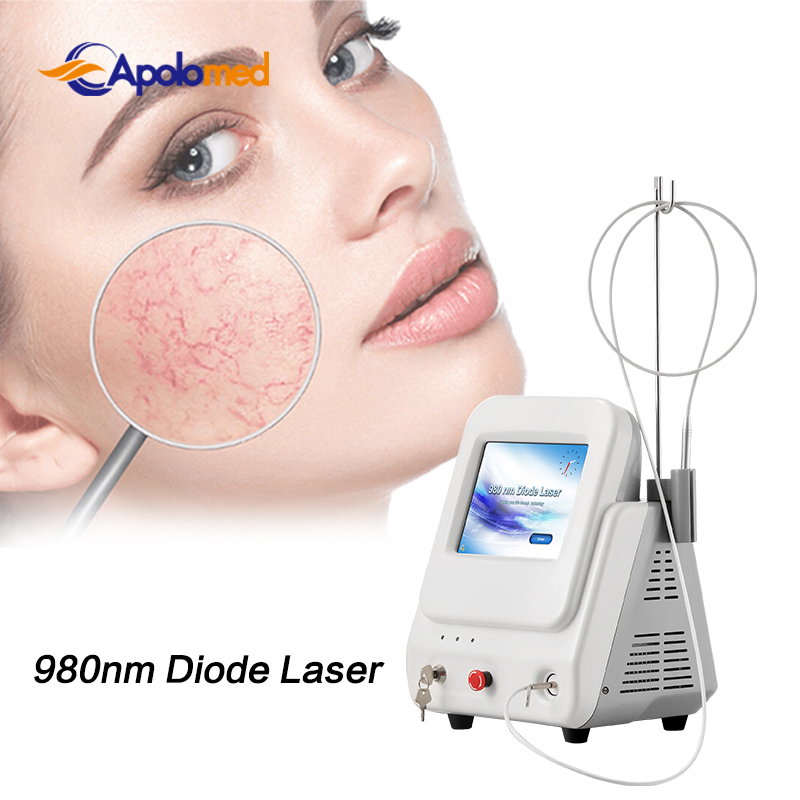

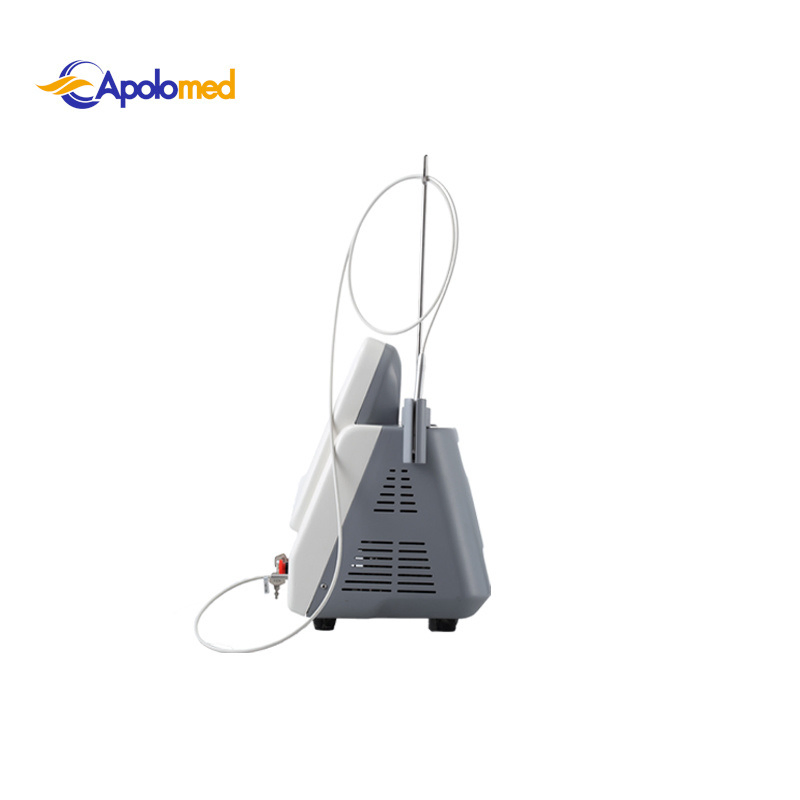

| Model NO. | HS-890 |
|---|---|
| Application | for Commercial |
| Portable | Portable |
| Certification | CE0197, ISO13485, FDA |
| Wavelength | 980nm |
| Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5~400ms |
| Cooling System | Air Cooling |

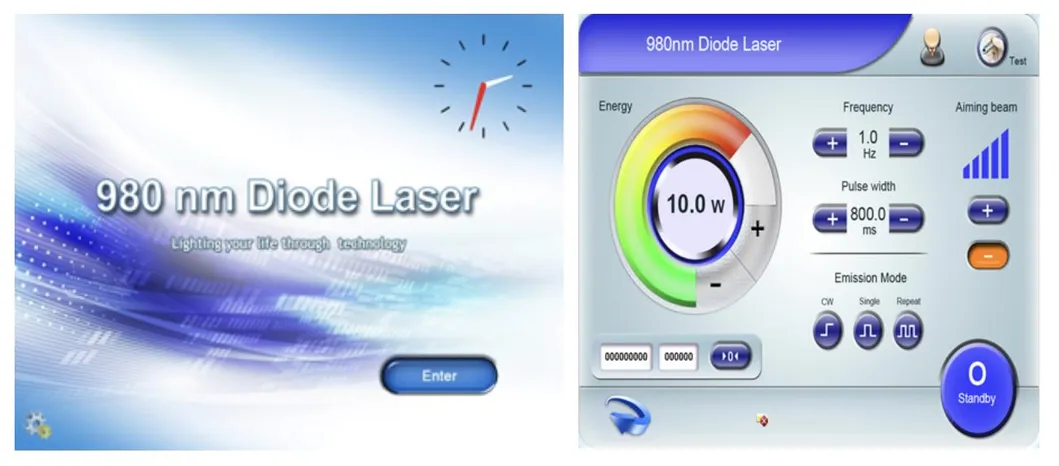

| Control Mode | 8" True Color Touch Screen |
| Power Supply | AC 100~240V, 50/60Hz |
| Specification | 28*27*37cm (L*W*H) |
| Production Capacity | 2300 Sets Per Month |

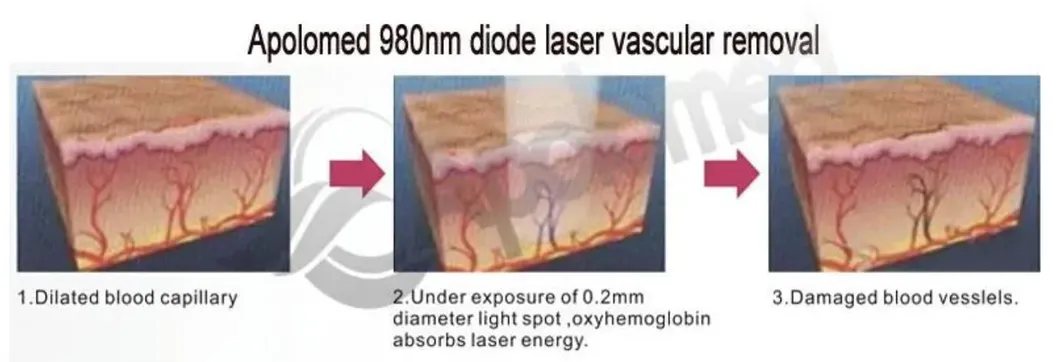

PRINCIPLE
Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vascular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation.
Due to the specific 980nm wavelength of the laser, it assures normal intact skin tissue architecture in the greatest degree during the vascular treatment and also ensures a good therapeutic effect without damaging superficial skin.
| Wavelength | 980nm |
|---|---|
| Laser output power | 2~30W |
| Output modes | CW, single or repeat pulse |
| Pulse width | 5, 10~400ms |
| Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz |
| Single pulse Energy | 0.1~12J |
| Repeat pulse Power | 0.1~18W |

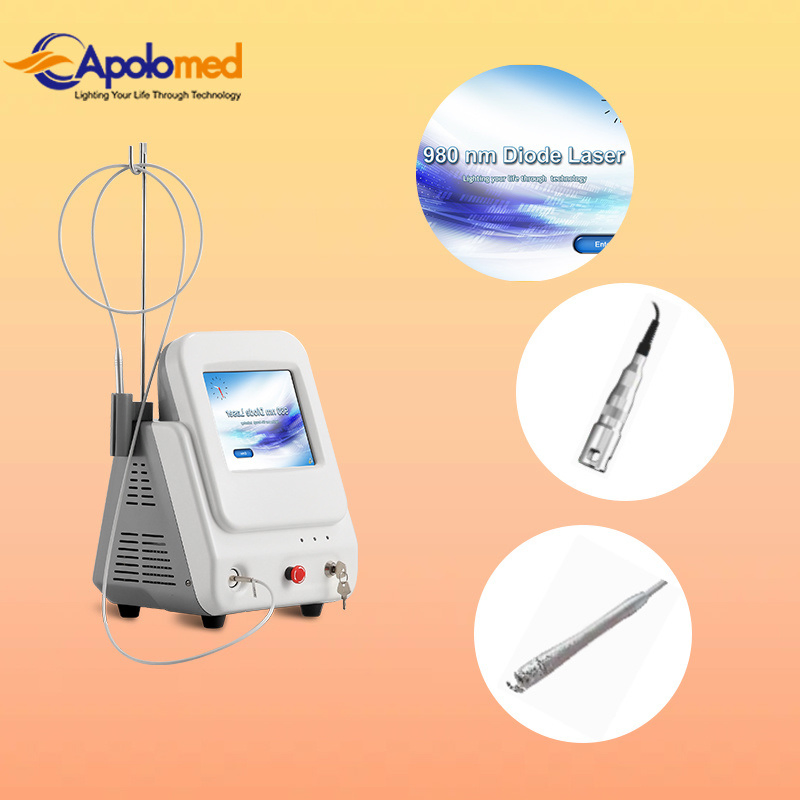

| Transmission system | Fibers of 300um, with SMAS 905 connector |
| Aiming beam | Diode 650nm (red), ≤2mW |
| Weight | 8Kgs |
Our Diode Laser Vascular Device is medical CE approved and USA FDA cleared. Its 30W output power provides a precise and elegant solution for the removal of thread veins.
BEFORE / AFTER PHOTO

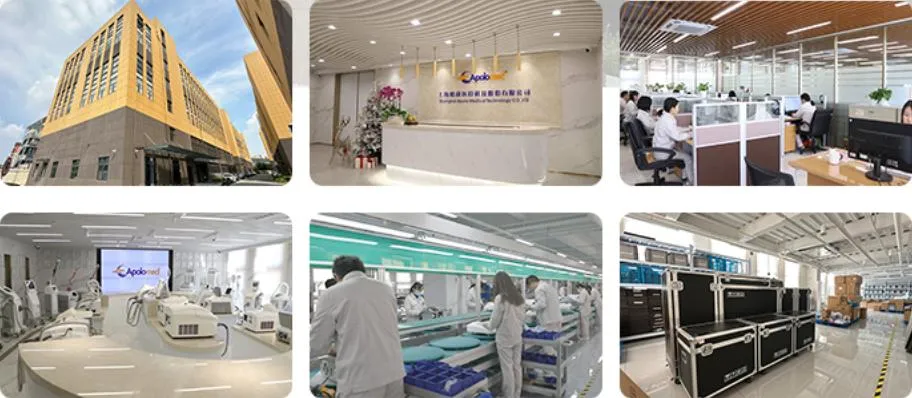

A leading designer and manufacturer of Intense Pulsed Light(IPL), Various technologies Laser (Pico Nd:YAG, CO2...), Platform Laser, HIFU, PDT LED, and Body Slimming technologies for use in medical and aesthetic industries. Since 2001, we have developed over 40 high-standard devices to meet skin and beauty requirements with patented technologies.
