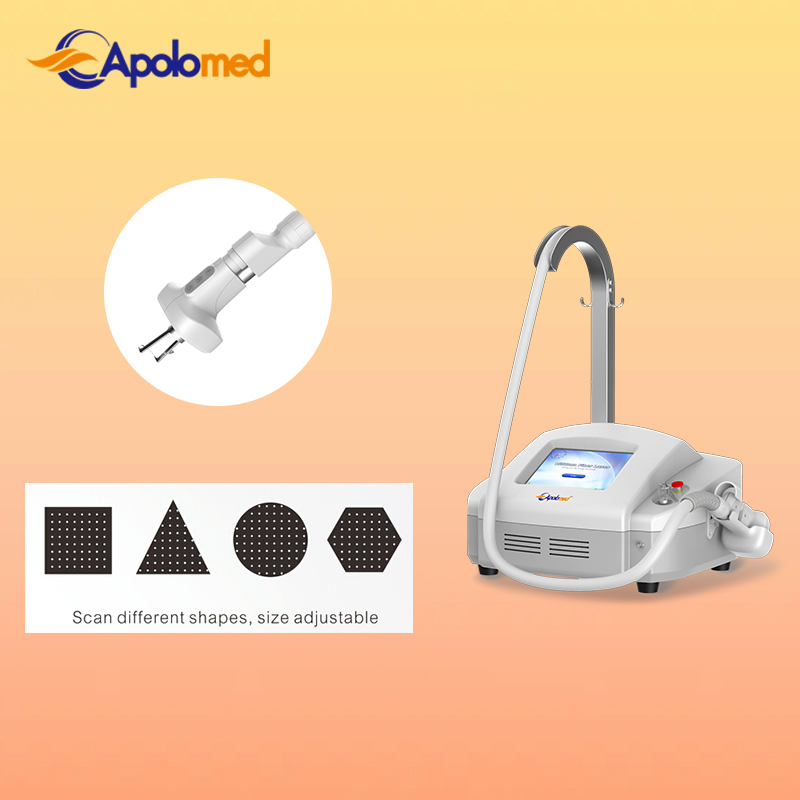

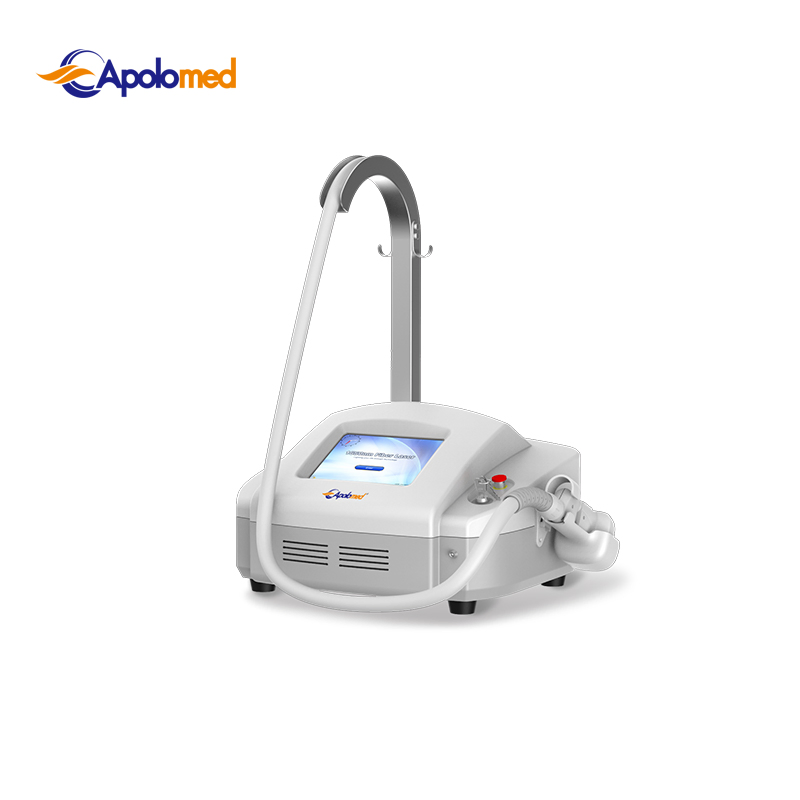

| Model NO. | HS-230 |
| Application | for Commercial |
| Portable | Portable |
| Certification | CE0197, ISO13485, FDA 510K221770 |
| Wavelength | 1550nm |
| Laser Power | 15W |
| Laser Output | 1~120mj/DOT |
| Scan Area | 20*20mm |
| Density | 25~3025 PPA/Cm2 (12 Level) |
| Pulse Width | 1~20ms/DOT |
| Operate Mode | Array, Random |
| Operate Interface | 9.7'' True Color Touch Screen |
| Cooling System | Advanced Air Cooling System |
| Transport Package | Aluminum Box |
| Specification | 52*44*32cm(L*W*H) |
| Production Capacity | 1500sets/Year |

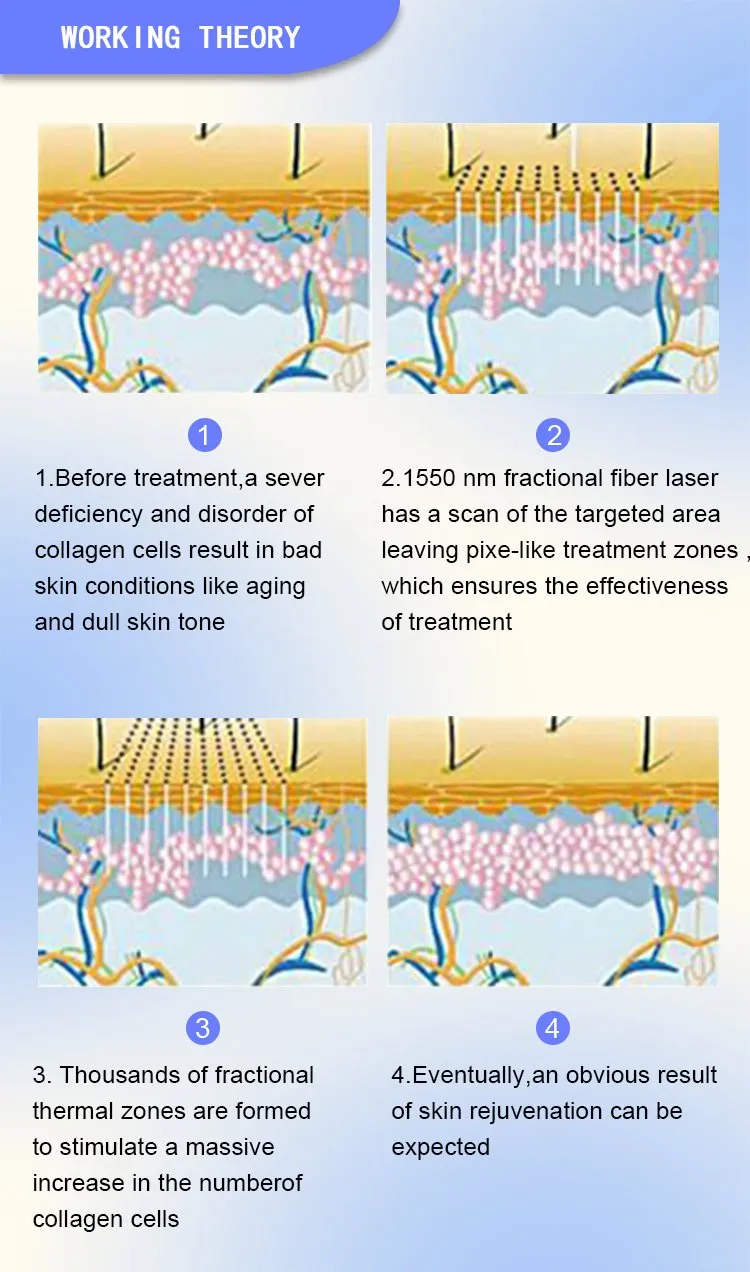

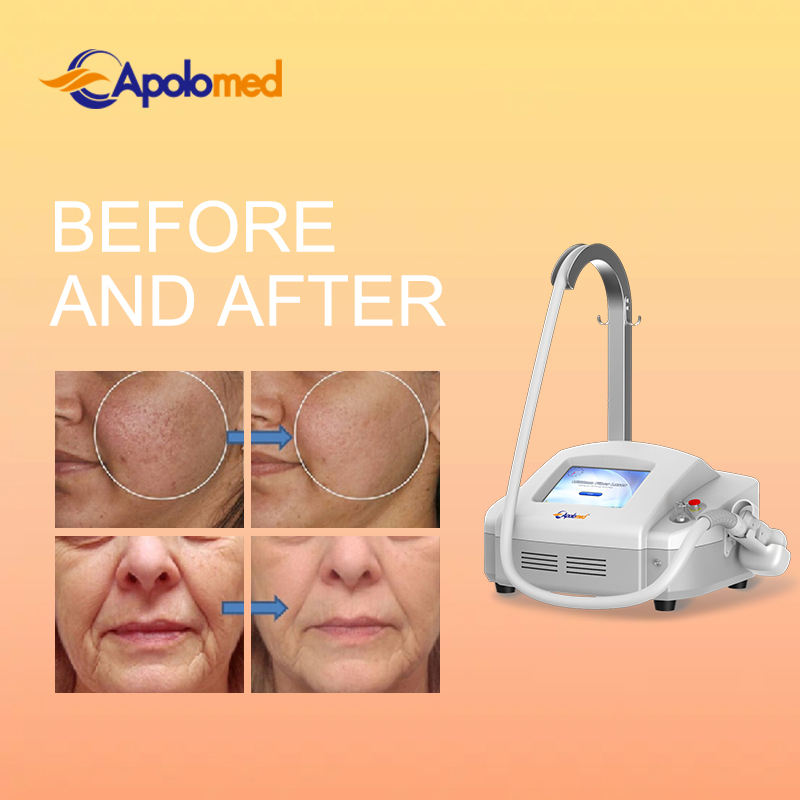

1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetrates deep into the dermis, remolding collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restores smooth after several treatments.
Fiber laser treatment with free set scan shape
| Model | HS-230 |
| Wavelength | 1550nm Erbium fiber laser |
| Laser power | 15W |
| Laser output | 1~120 mJ/dot |
| Density | 25~3025 PPA/cm2 (12level) |
| Scan area | 20x20mm |
| Pulse width | 0.06~8ms/dot |
| Operate mode | Array, Random |

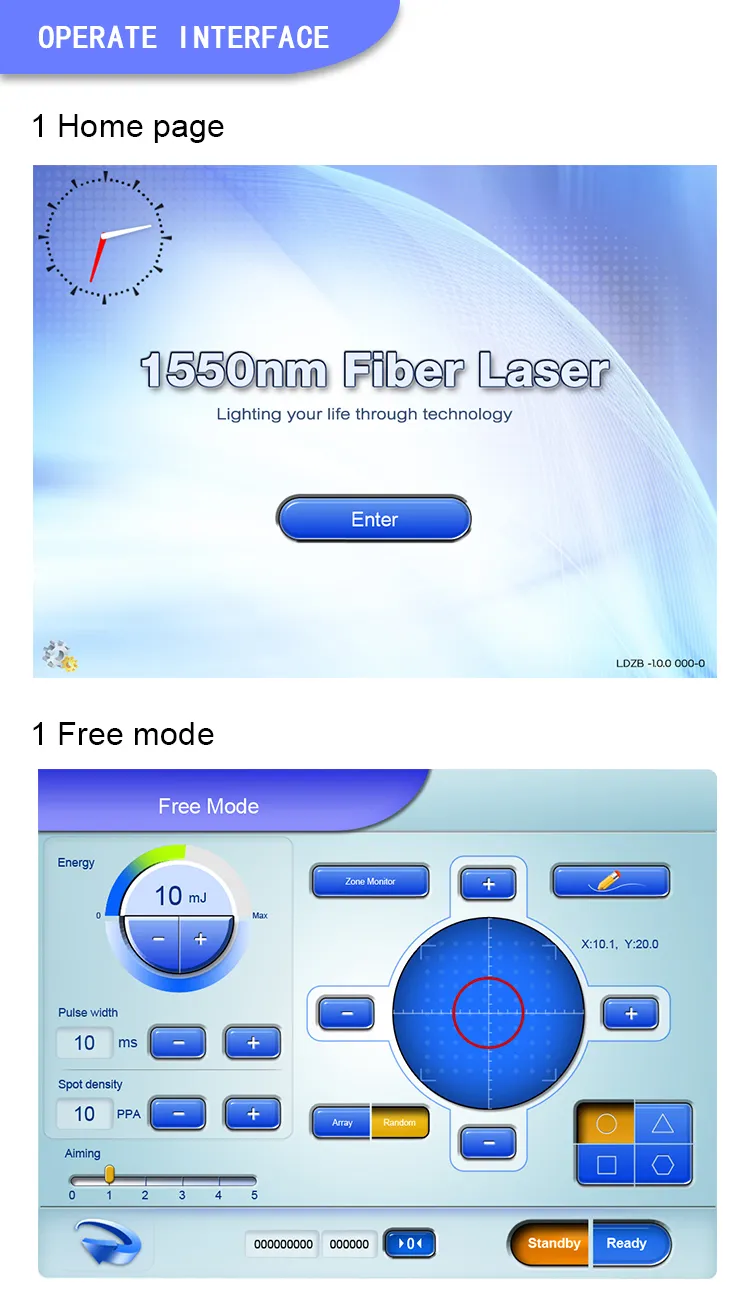

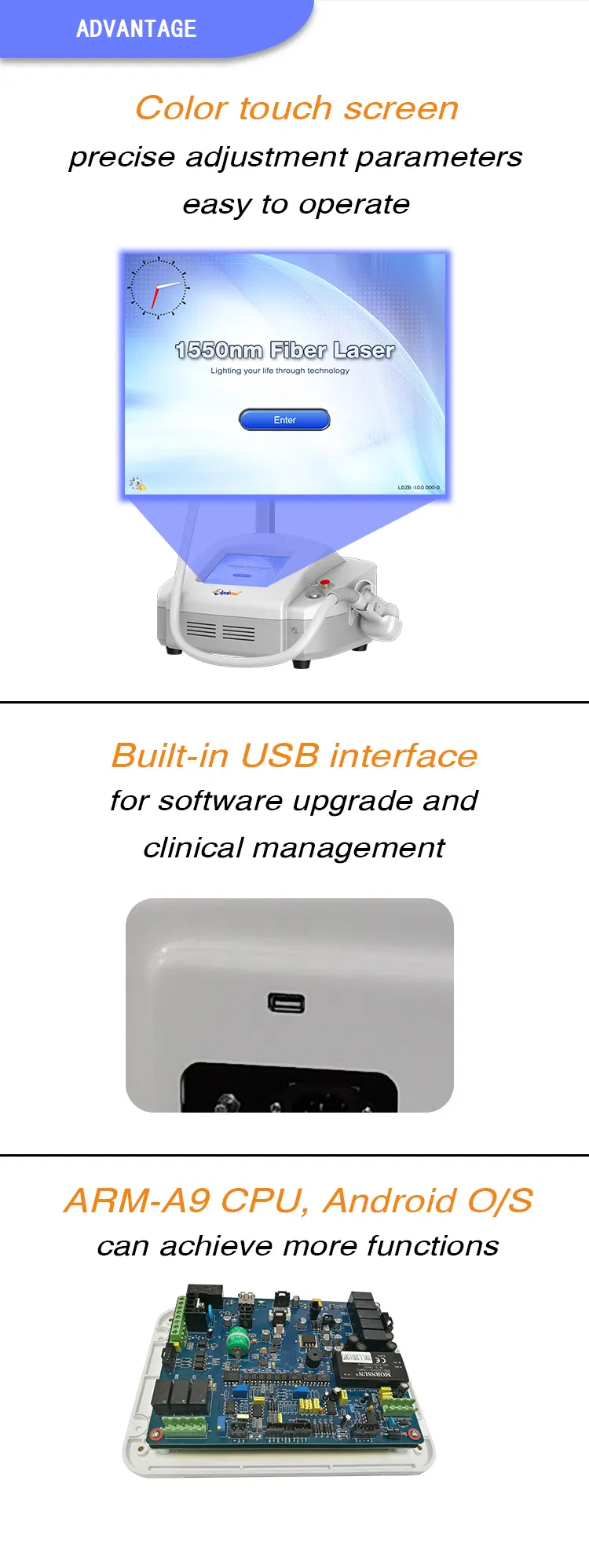

| Operate interface | 9.7" true color touch screen |
| Cooling System | Advanced air cooling system |
| Power supply | AC100V or 230V, 50/60HZ |
| Dimension | 52x44x32cm (L*W*H) |
| Weight | 30Kg |

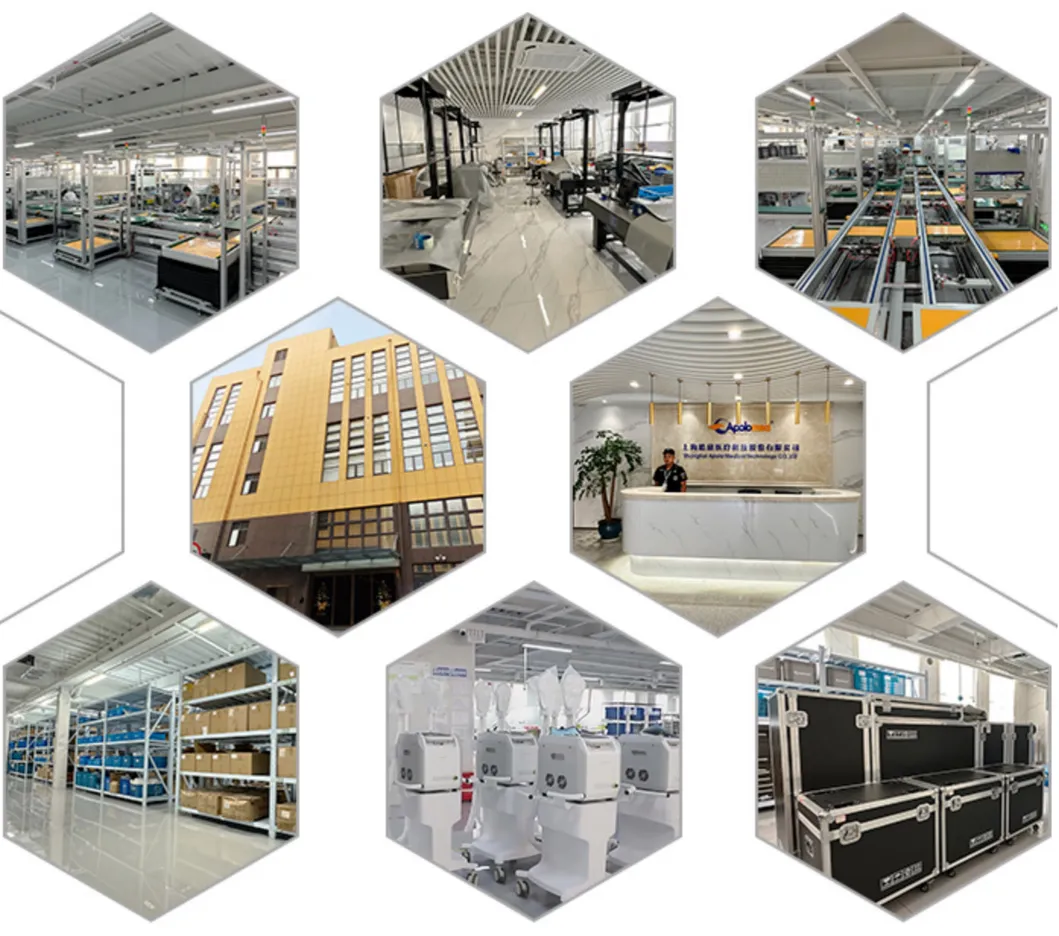

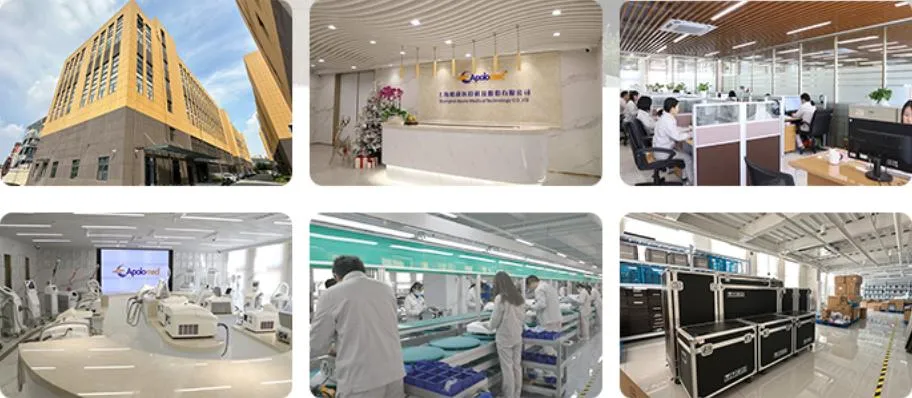

We are a leading designer and manufacturer of Intense Pulsed Light (IPL), various laser technologies (Pico Nd:YAG, CO2...), Platform Laser, HIFU, PDT LED, and body slimming technologies for medical and aesthetic industries. Since 2001, we have designed, developed, and manufactured over 40 high-standard devices with patented technologies.
Equipment is manufactured strictly in accordance with ISO 13485 and all products comply with Medical CE certificates. We have also obtained certificates such as US 510K, Australia TGA, and Brazil Anvisa, ensuring global compliance and quality.
