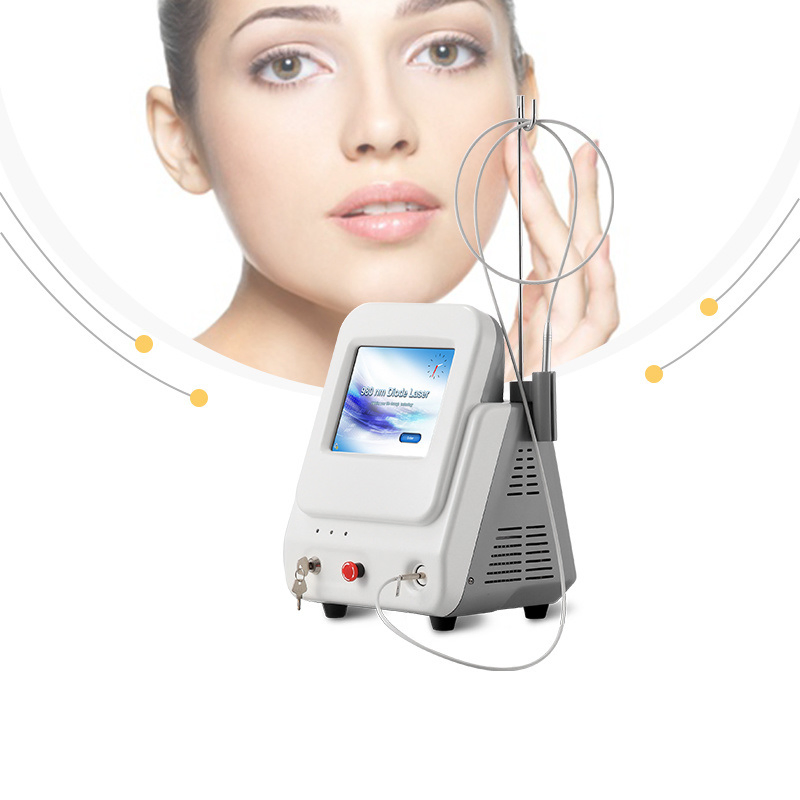

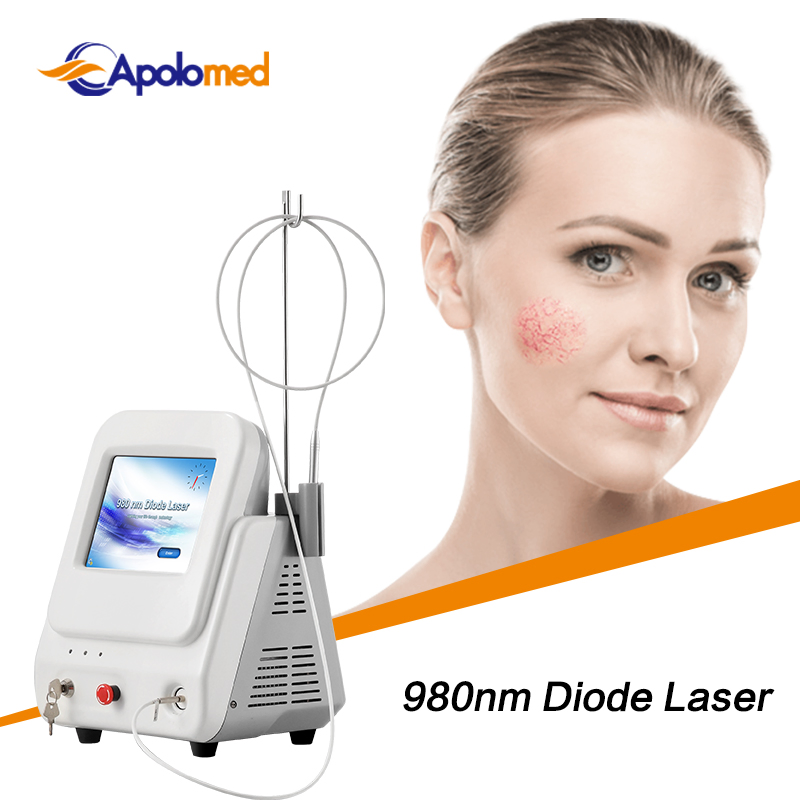

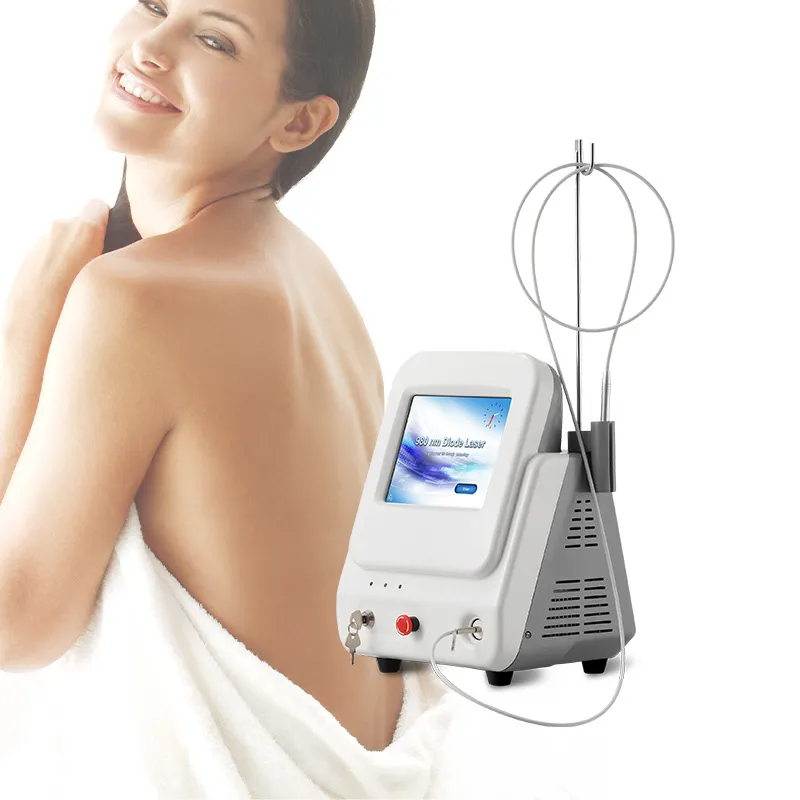

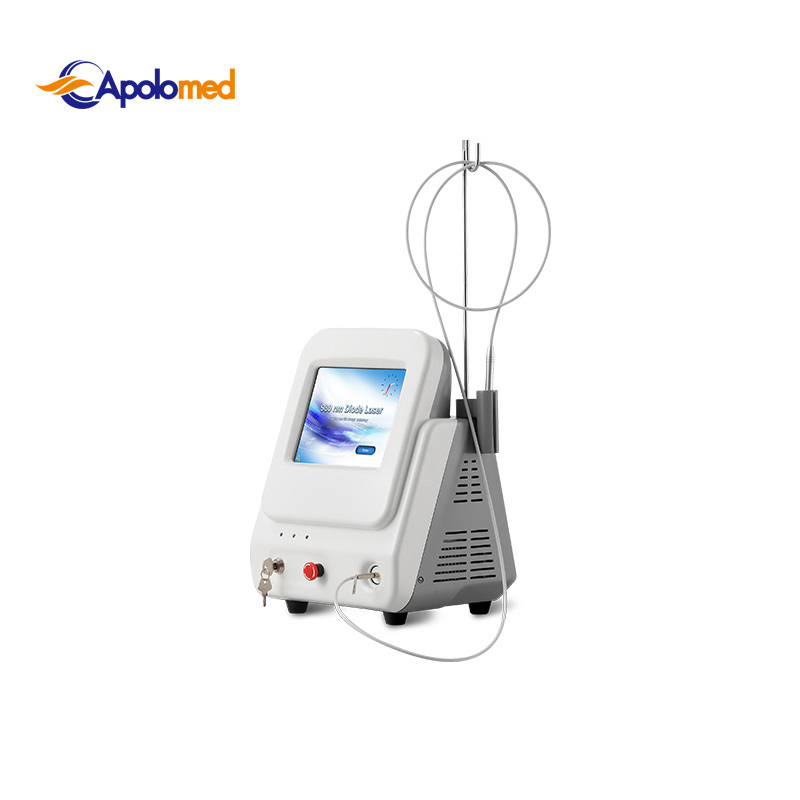

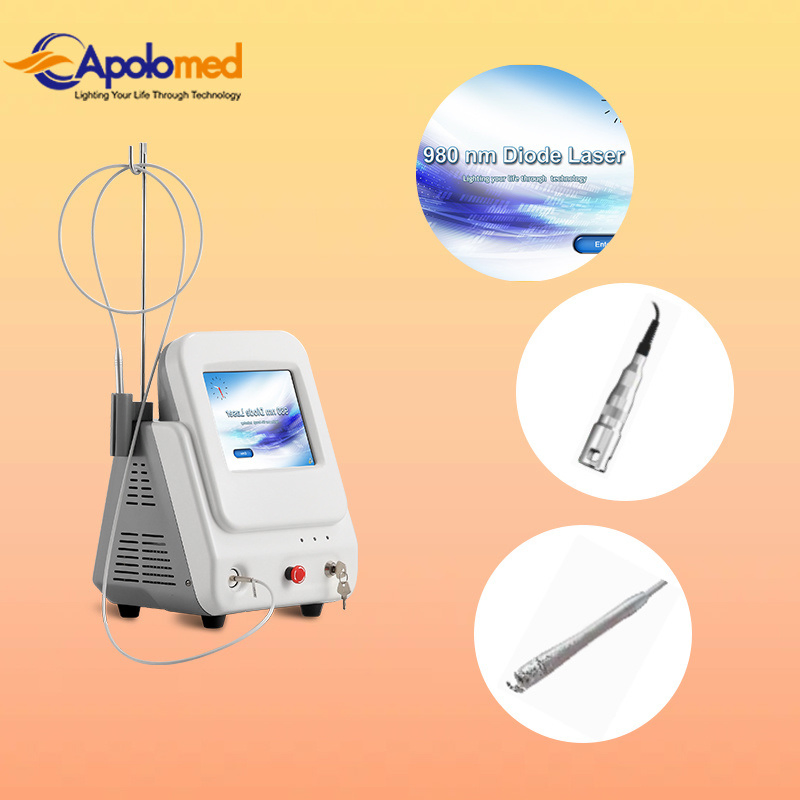

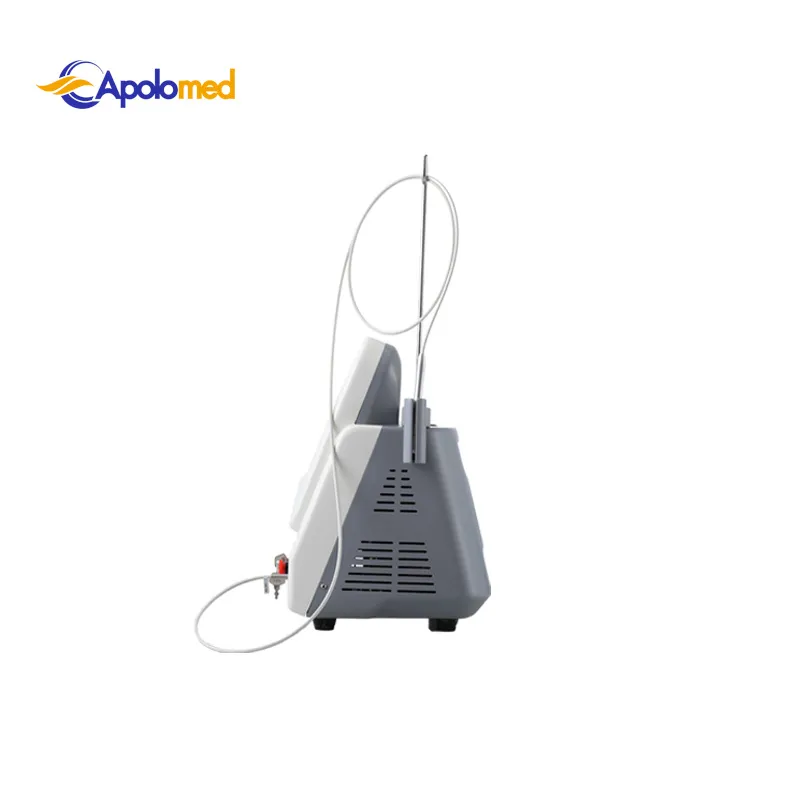

| Model | HS-890 |
|---|---|
| Application | Commercial Use |
| Portable | Yes |
| Certification | CE0197, ISO13485, FDA 510K |
| Wavelength | 980nm |
| Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5~400ms |
| Repetition Rate | 1, 2, 3, 5, 10~50Hz |
| Cooling System | Air Cooling |

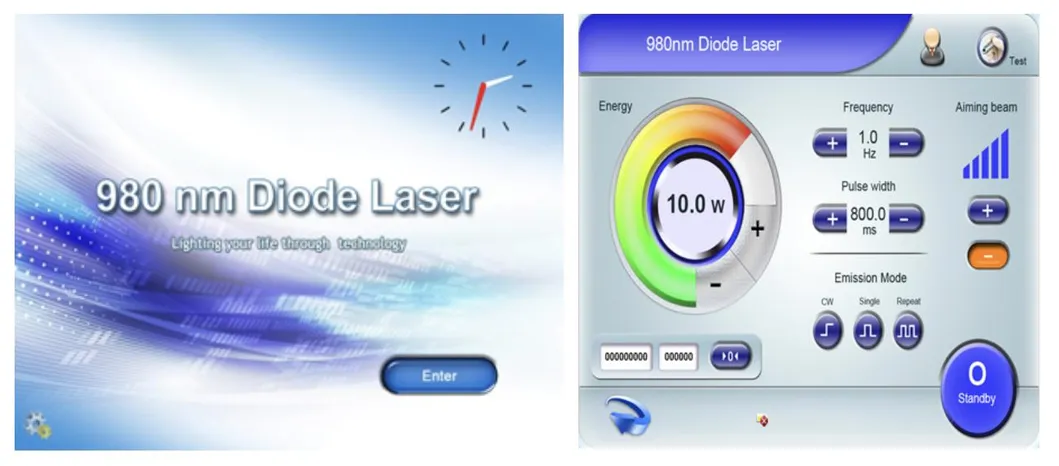

| Control Mode | 8" True Color Touch Screen |
| Weight | 8Kgs |

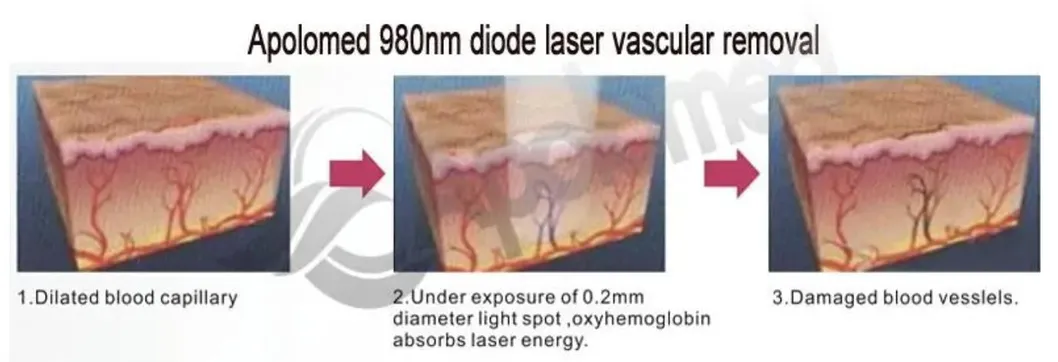

Based on the theory of "selective laser photothermal", the 980nm diode laser system uses specific wavelengths to penetrate skin for vascular treatment. Under laser irradiation, hemoglobin and red pigment capillaries maximize absorption of laser energy. This leads to solidification, blocking of blood vessels, and capillary shrinkage, resulting in intravascular coagulation and eventual metabolic degradation.
The specific 980nm wavelength ensures normal intact skin tissue architecture is preserved to the greatest degree while achieving excellent therapeutic effects without damaging the superficial skin.

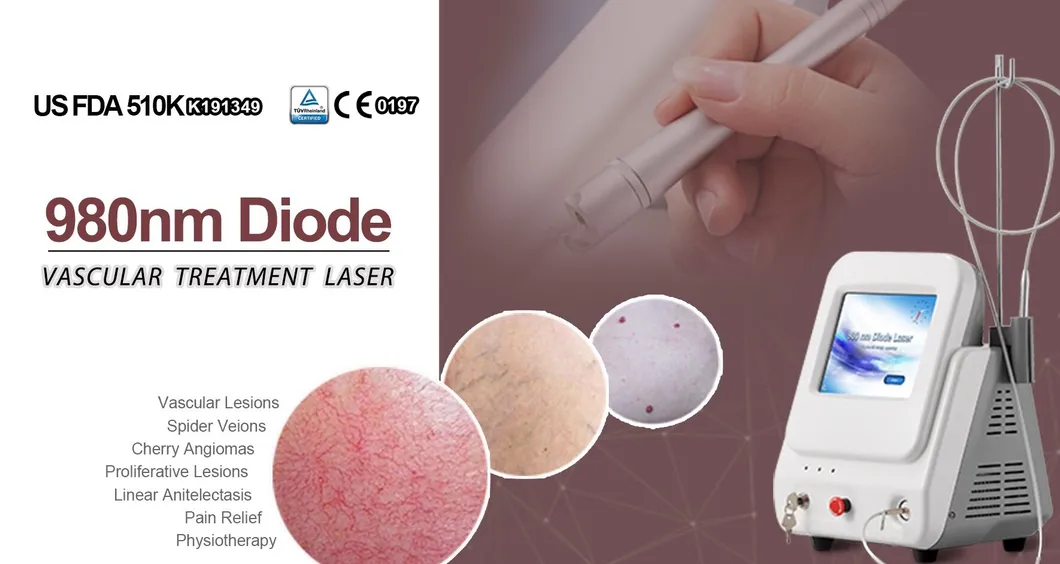

Effective for various skin conditions:
| Wavelength | 980nm |
|---|---|
| Laser Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5, 10~400ms |
| Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz |

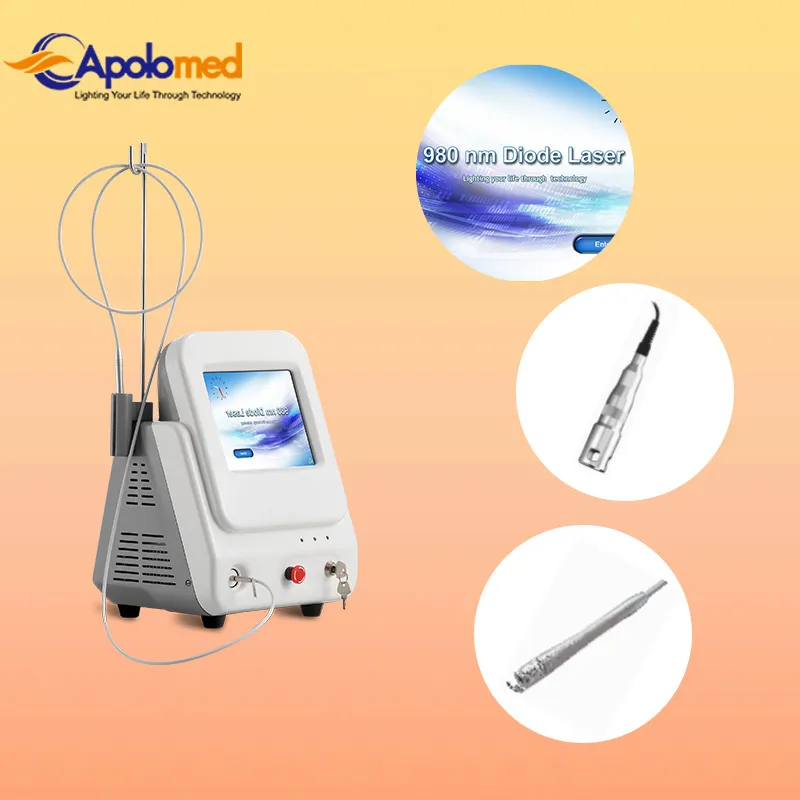

| Transmission System | Fibers of 300um, with SMAS 905 connector |
| Aiming Beam | Diode 650nm (red), ≤2mW |
| Dimension | 28*27*37cm (L*W*H) |
BEFORE & AFTER RESULTS

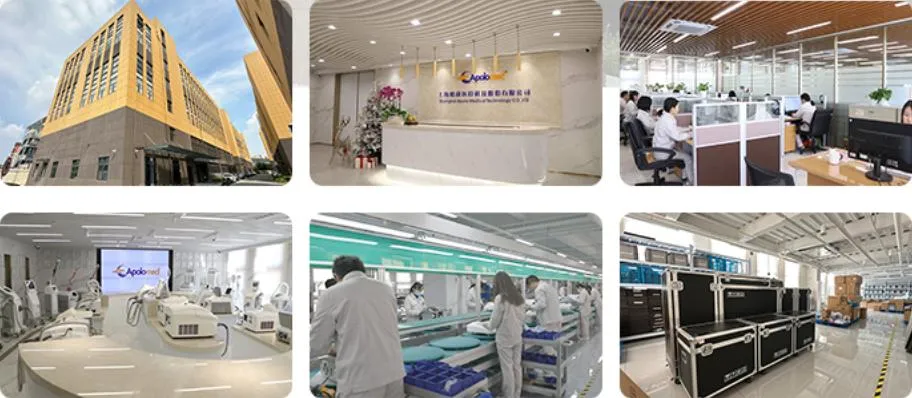

As a leading designer and manufacturer, we specialize in Intense Pulsed Light (IPL), various Laser technologies (Pico Nd:YAG, CO2), Platform Lasers, HIFU, and Body Slimming technologies. Since 2001, we have developed over 40 high-standard devices with patented technologies.
Our equipment is manufactured strictly in accordance with ISO 13485. All products comply with Medical CE certificates under Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR). High-end products have obtained certificates of US 510K, Australia TGA, and Brazil Anvisa.
